Introduction

In today's interconnected world, the ability to access and control computers remotely has become an essential aspect of modern IT infrastructure. Windows Remote Desktop Protocol (RDP) stands at the forefront of this technology, offering a powerful and versatile solution for remote access and management of Windows-based systems. As we step into 2024, understanding and leveraging RDP has never been more critical for businesses, IT professionals, and even home users.

This comprehensive guide will take you on a journey through the intricacies of Windows RDP, from its fundamental concepts to advanced features and future trends. Whether you're a seasoned IT professional looking to optimize your remote access strategy or a curious user exploring the possibilities of remote computing, this article will provide you with valuable insights and practical knowledge.

At TildaVPS, we recognize the pivotal role that RDP plays in the realm of virtual private servers and remote computing. Our goal is to equip you with the knowledge and tools necessary to harness the full potential of RDP, ensuring secure, efficient, and seamless remote access to your Windows environments.

Let's embark on this exploration of Windows RDP, uncovering its capabilities, best practices, and the exciting developments that lie ahead in 2024 and beyond.

Understanding Windows RDP

What is Remote Desktop Protocol?

Remote Desktop Protocol (RDP) is a proprietary protocol developed by Microsoft that allows users to connect to another computer over a network connection. It provides a graphical interface for connecting to another computer running Windows, enabling users to interact with the remote system as if they were sitting in front of it.

Key Features of Windows RDP

1. Graphical User Interface: RDP transmits the graphical user interface of the remote computer to the client device.
2. Multi-Channel Communication: Supports separate virtual channels for carrying presentation data, serial device communication, licensing information, and encrypted data.
3. Encryption: Uses RC4 cipher with a 128-bit key to encrypt data transmission.
4. Audio Redirection: Allows users to hear audio from the remote computer on their local device.
5. File System Redirection: Enables access to local files and folders from the remote session.
6. Printer Redirection: Allows printing to local printers from the remote session.
7. Multi-Monitor Support: Supports the use of multiple monitors in remote sessions.

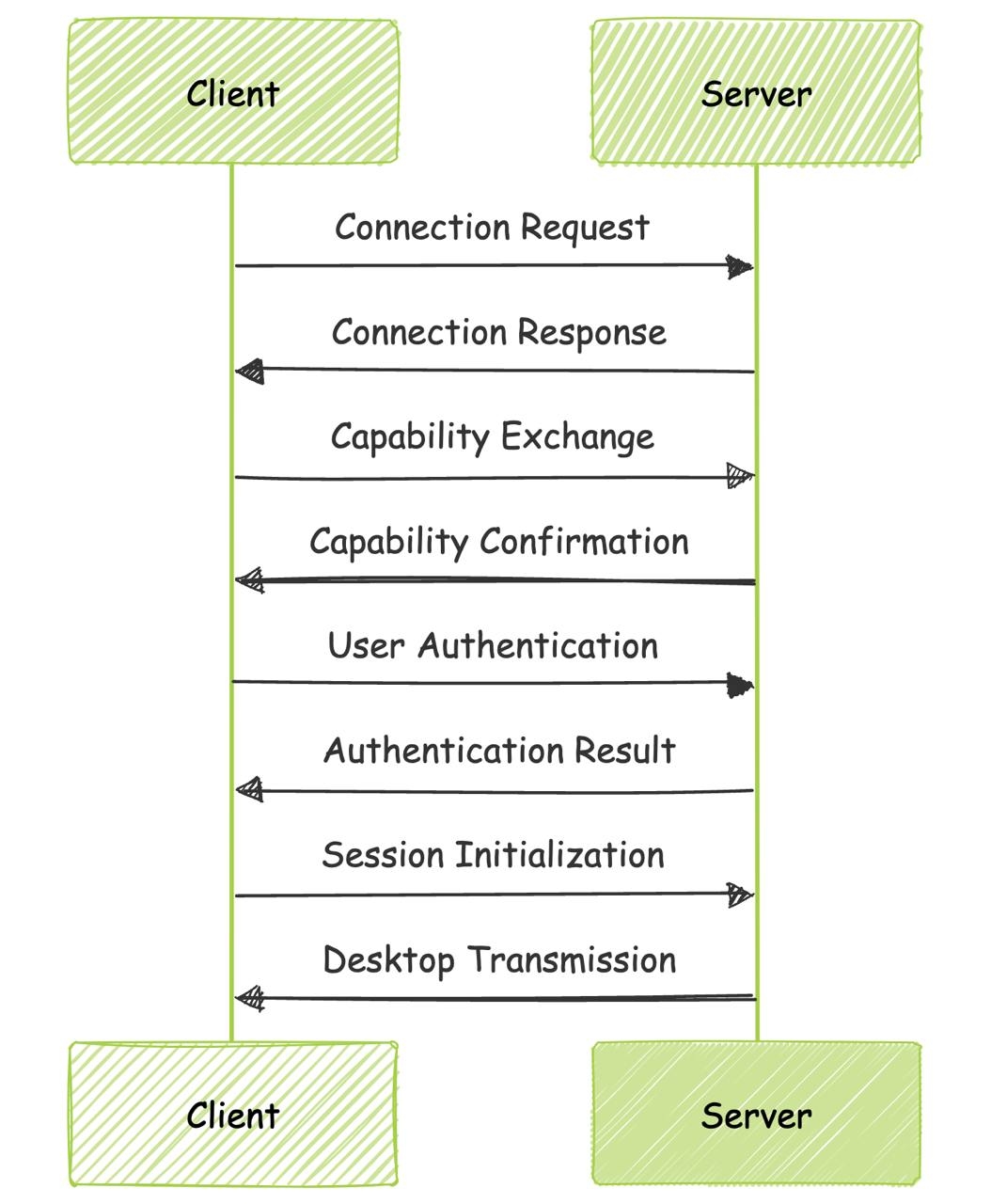

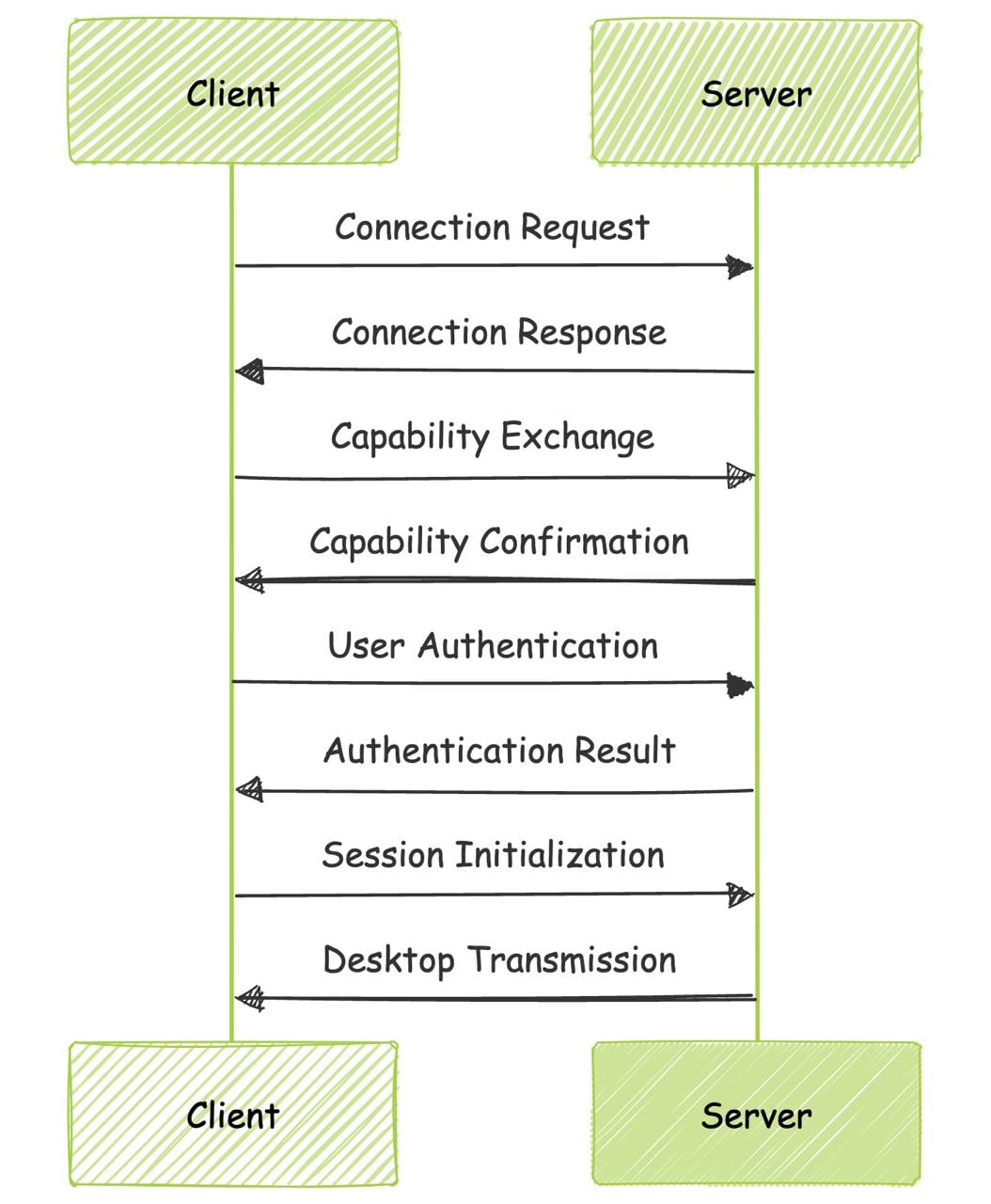

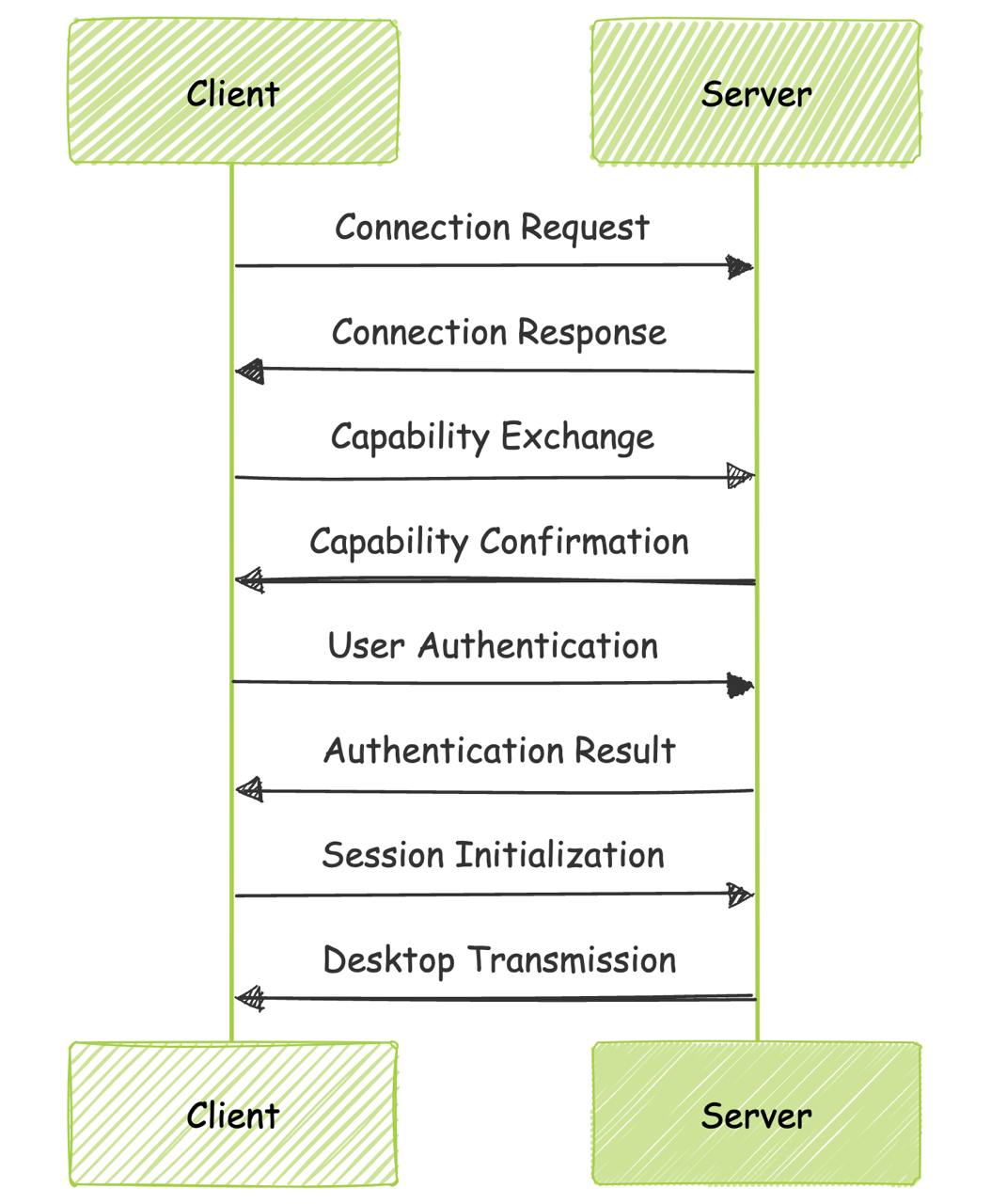

How RDP Works

RDP operates on a client-server model:

1. The RDP server listens on TCP port 3389 by default.
2. When a client initiates a connection, it sends a connection request to the server.
3. The server responds, and a secure channel is established using TLS (Transport Layer Security).
4. The client and server exchange capabilities and negotiate the terms of the connection.
5. Once authenticated, the server sends the graphical output to the client, and the client sends user input back to the server.

Benefits of Using RDP

1. Remote Access: Work from anywhere with an internet connection.
2. Cost-Effective: Reduce the need for on-site IT support and travel.
3. Centralized Management: Easily manage multiple systems from a single location.
4. Improved Productivity: Access work resources from various devices and locations.
5. Scalability: Easily scale IT resources without significant hardware investments.

RDP vs. Other Remote Access Solutions

While RDP is a powerful tool, it's essential to understand how it compares to other remote access solutions:

Feature	RDP	VNC	TeamViewer	SSH
GUI Support	Yes	Yes	Yes	Limited
Default Port	3389	5900	5938	22
Encryption	Yes	Optional	Yes	Yes
Cross-Platform	Limited	Yes	Yes	Yes
File Transfer	Yes	Limited	Yes	Yes
Performance	High	Moderate	High	High (CLI)

Mini-FAQ

Q: Is RDP only available for Windows operating systems? A: While RDP is native to Windows, there are RDP clients available for other operating systems like macOS, Linux, and mobile platforms. However, the RDP server is primarily a Windows feature.

Q: Can multiple users connect to the same machine using RDP simultaneously? A: Yes, but this requires Windows Server editions or specific configurations on Windows Professional editions. Standard Windows Home editions do not support multiple simultaneous RDP connections.

Section Summary

Windows RDP is a powerful and feature-rich protocol for remote access and management of Windows systems. Its ability to provide a seamless, graphical remote experience, coupled with robust security features and performance optimizations, makes it an indispensable tool in modern IT environments. Understanding the fundamentals of RDP lays the groundwork for effectively implementing and managing remote access solutions in your organization or personal computing setup.

Setting Up and Configuring RDP

Enabling RDP on Windows

Before you can use RDP, you need to enable it on the host computer. Here's how to do it:

1. Open the Start menu and search for "Remote Desktop Settings"
2. Toggle on "Enable Remote Desktop"
3. Click "Confirm" when prompted

For more advanced settings:

1. Open System Properties (Win + Pause/Break)
2. Click on "Remote" tab
3. Select "Allow remote connections to this computer"
4. Choose whether to require Network Level Authentication (recommended)

Configuring Firewall Settings

To ensure RDP connections can reach your computer:

1. Open Windows Defender Firewall with Advanced Security
2. Select "Inbound Rules"
3. Find and enable the rule for "Remote Desktop - User Mode (TCP-In)"

# PowerShell command to enable RDP through Windows Firewall
Enable-NetFirewallRule -DisplayGroup "Remote Desktop"

Setting Up Port Forwarding

If you're connecting from outside your local network:

1. Access your router's configuration page
2. Navigate to Port Forwarding settings
3. Create a new rule:
   • External Port: 3389
   • Internal Port: 3389
   • Protocol: TCP
   • Internal IP: Your computer's local IP address

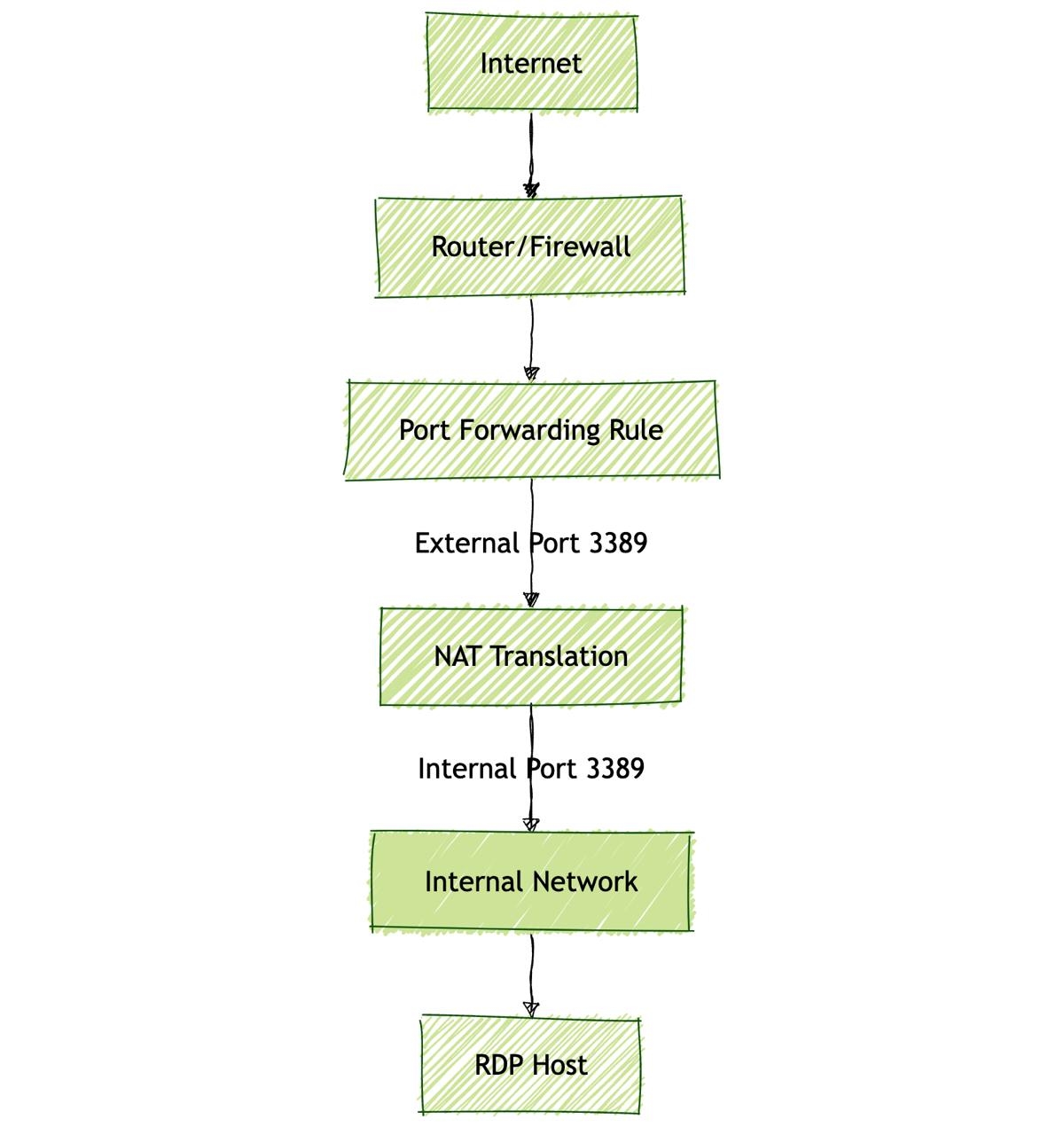

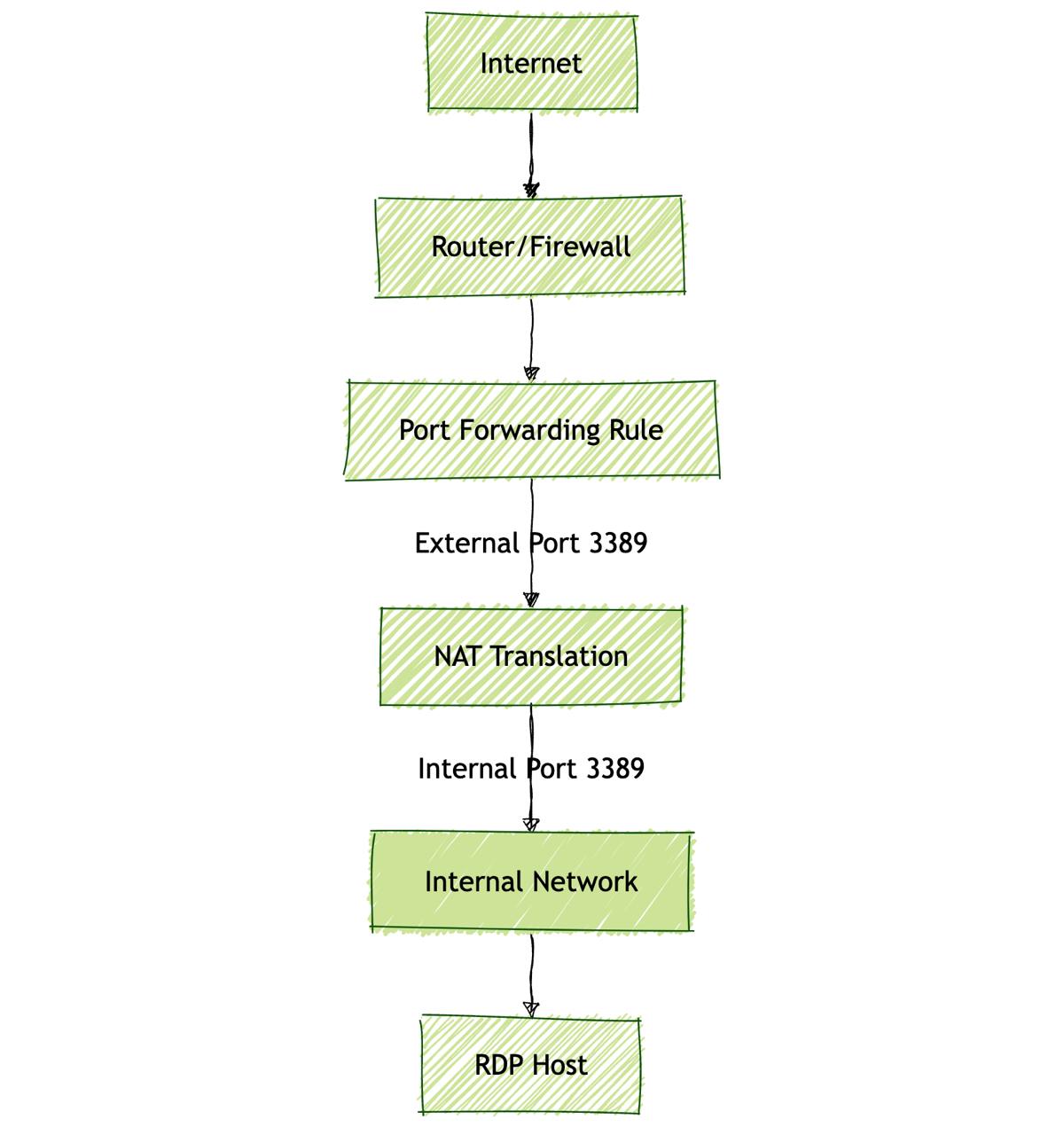

Diagram illustrating the concept of port forwarding for RDP

Configuring User Access

To control who can access your computer via RDP:

1. Open Computer Management
2. Navigate to Local Users and Groups > Groups
3. Double-click on "Remote Desktop Users"
4. Add or remove users as needed

RDP Client Setup

For the client computer:

1. Open the Remote Desktop Connection app
2. Enter the IP address or hostname of the remote computer
3. Click "Connect"
4. Enter your credentials when prompted

Advanced Configuration Options

• Performance Tuning: Adjust visual effects for better performance over slow connections
• Resource Redirection: Configure which local resources (printers, drives, etc.) are available in the remote session
• Multi-Monitor Support: Enable the use of multiple monitors in your RDP session

Best Practices for RDP Setup

1. Use strong, unique passwords for all accounts
2. Implement two-factor authentication where possible
3. Regularly update both client and server systems
4. Use a VPN for additional security when connecting over the internet
5. Limit RDP access to specific IP addresses or ranges

Mini-FAQ

Q: Can I change the default RDP port for added security? A: Yes, you can change the default port by modifying the Windows Registry. However, this should be done cautiously and in conjunction with other security measures.

Q: How can I improve RDP performance over slow connections? A: Adjust visual settings, disable unnecessary features like font smoothing, and consider using RDP compression tools or optimized clients.

Section Summary

Setting up and configuring RDP involves several steps, from enabling the feature on the host computer to configuring network settings and client applications. By following best practices and understanding the various configuration options, you can create a secure and efficient remote access environment. Remember that proper setup is crucial for both performance and security, so take the time to configure RDP correctly for your specific needs.

Security Best Practices for RDP

The Importance of RDP Security

Remote Desktop Protocol, while incredibly useful, can also be a significant security risk if not properly secured. In recent years, RDP has become a prime target for cybercriminals, with numerous attacks exploiting poorly configured or unprotected RDP connections. According to a 2023 report by Cybersecurity Ventures, RDP attacks increased by 768% in 2020 and have continued to be a major threat vector [1].

Essential Security Measures

1. Use Strong Passwords: Implement complex, unique passwords for all accounts that have RDP access.

2. Enable Network Level Authentication (NLA): This requires users to authenticate before establishing an RDP connection.

3. Implement Multi-Factor Authentication (MFA): Add an extra layer of security beyond just passwords.

4. Limit RDP Access: Use firewalls to restrict RDP access to specific IP addresses or ranges.

5. Change the Default RDP Port: Move away from the well-known port 3389 to a non-standard port.

6. Use a VPN: Require users to connect through a VPN before accessing RDP.

7. Keep Systems Updated: Regularly apply security patches and updates to both clients and servers.

8. Enable Encryption: Ensure that RDP connections are encrypted using TLS 1.2 or higher.

Advanced Security Configurations

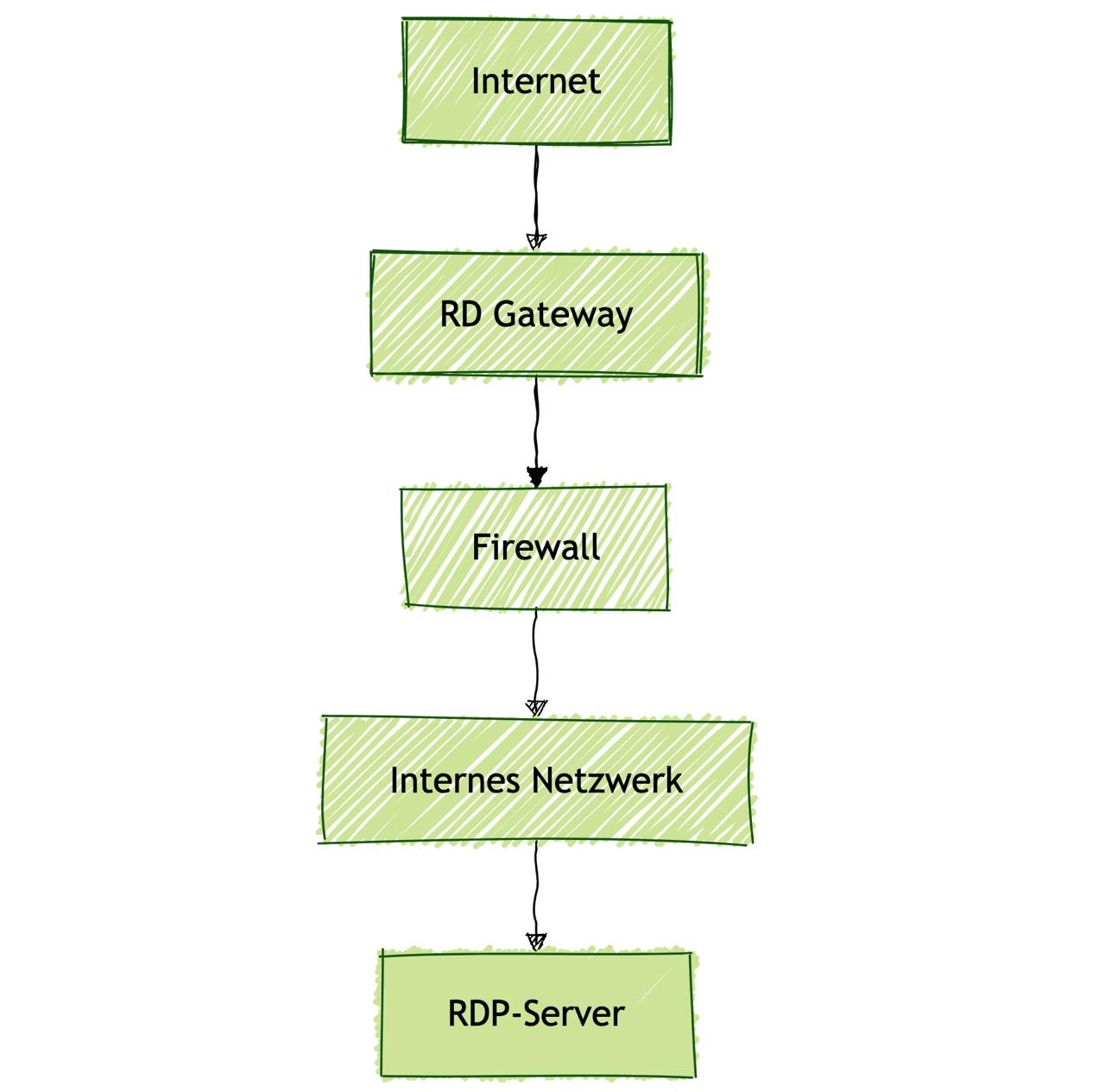

Remote Desktop Gateway

Implement a Remote Desktop Gateway server to provide a single point of access for RDP connections, allowing for centralized security policies and logging.

Just-In-Time Access

Implement a system where RDP access is granted only when needed and automatically revoked after a set period.

Session Monitoring and Logging

Use tools to monitor and log RDP sessions for suspicious activities. This can help in detecting and responding to potential security incidents.

Best Practices for Secure RDP Usage

1. Principle of Least Privilege: Grant users only the permissions they need to perform their tasks.

2. Regular Security Audits: Conduct periodic audits of RDP configurations and access logs.

3. Employee Training: Educate users about RDP security best practices and potential risks.

4. Incident Response Plan: Develop and maintain a plan for responding to potential RDP-related security incidents.

5. Use of Secure Protocols: Ensure that only secure versions of RDP (RDP 8.0 or later) are in use.

TildaVPS RDP Security Features

At TildaVPS, we take RDP security seriously. Our VPS solutions come > with:

• Built-in firewalls with preconfigured RDP security rules
• Automatic security updates for the underlying infrastructure
• Optional VPN integration for secure remote access
• Advanced monitoring and alerting systems for detecting suspicious activities

Mini-FAQ

Q: How can I check if my RDP connection is encrypted? A: You can use tools like Wireshark to analyze the network traffic. Encrypted RDP traffic will appear as TLS traffic on the network.

Q: Is it safe to use RDP over the public internet? A: While it's possible, it's not recommended without additional security measures like VPNs or Remote Desktop Gateways. Always use strong encryption and authentication methods.

Section Summary

Securing RDP is crucial in today's threat landscape. By implementing strong passwords, multi-factor authentication, encryption, and following best practices like limiting access and using VPNs, you can significantly reduce the risk of RDP-related security incidents. Remember, security is an ongoing process that requires regular attention and updates to stay ahead of evolving threats.

[1] Cybersecurity Ventures. (2023). "Annual Cybercrime Report 2023."

Advanced RDP Features and Optimizations

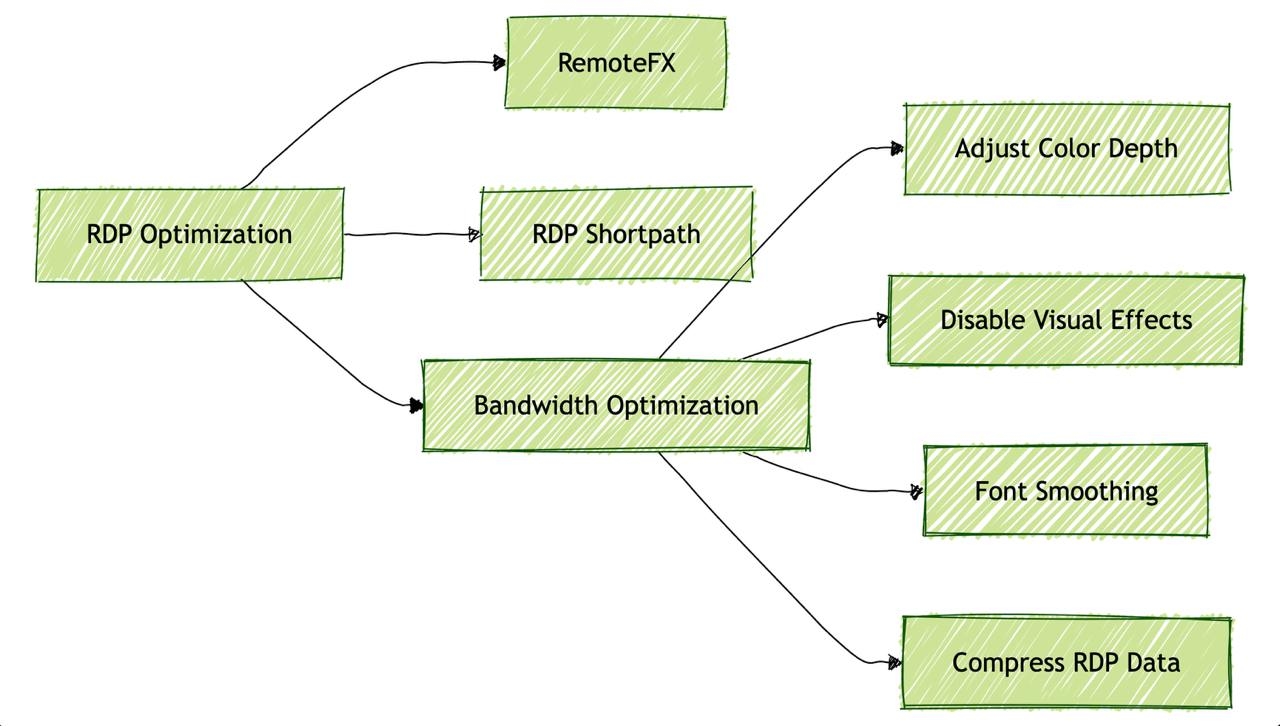

Enhancing RDP Performance

As remote work continues to grow, optimizing RDP performance becomes crucial for maintaining productivity and user satisfaction. Here are some advanced features and optimizations to enhance your RDP experience:

RemoteFX

RemoteFX is a set of RDP technologies that provide a rich user experience over WAN connections:

• GPU Virtualization: Allows multiple virtual machines to share a physical GPU.
• Advanced Codecs: Improves graphics performance and reduces bandwidth usage.
• USB Redirection: Enables the use of USB devices in remote sessions.

To enable RemoteFX:

1. Open Group Policy Editor
2. Navigate to Computer Configuration > Administrative Templates > Windows Components > Remote Desktop Services > Remote Desktop Session Host > Remote Session Environment
3. Enable "Use advanced RemoteFX graphics for Remote Desktop Connections"

RDP Shortpath

Introduced in Windows Server 2019, RDP Shortpath optimizes the connection path between the client and server:

• Reduces latency by establishing a direct UDP connection.
• Improves performance in high-latency environments.

To enable RDP Shortpath:

# On the RD Session Host server
Set-RDSessionCollectionConfiguration -CollectionName "Collection Name" -CustomRdpProperty "use redirection server name:i:1"

Bandwidth Optimization Techniques

1. Adjust Color Depth: Lower color depths can significantly reduce bandwidth usage.
2. Disable Visual Effects: Turn off animations, desktop composition, and other visual effects.
3. Font Smoothing: Disable font smoothing for text-heavy applications.
4. Compress RDP Data: Enable RDP compression in the client settings.

Advanced RDP Features

Remote Audio

Configure advanced audio settings for better quality or reduced bandwidth:

1. Open Remote Desktop Connection
2. Click "Show Options"
3. Go to the "Local Resources" tab
4. Under "Remote audio," choose your preferred settings

Multi-Monitor Support

RDP supports up to 16 monitors. To configure:

1. In Remote Desktop Connection, click "Show Options"
2. Go to the "Display" tab
3. Check "Use all my monitors for the remote session"

Remote Desktop Web Access

Implement Remote Desktop Web Access to allow users to connect via a web browser:

1. Install the Remote Desktop Web Access role on your server
2. Configure SSL certificates for secure connections
3. Customize the RD Web Access page to match your organization's branding

Performance Monitoring and Troubleshooting

Use built-in Windows tools to monitor and troubleshoot RDP performance:

• Performance Monitor: Track RDP-related counters for CPU, memory, and network usage.
• Event Viewer: Check for RDP-related events under "Applications and Services Logs > Microsoft > Windows > TerminalServices-*"
• Network Monitor: Analyze RDP network traffic for bottlenecks or issues.

TildaVPS RDP Optimizations

At TildaVPS, we offer:

• Pre-configured VPS instances optimized for RDP performance
• Automatic scaling of resources based on usage patterns
• Advanced networking features for reduced latency and improved > throughput

Mini-FAQ

Q: How can I measure the actual bandwidth usage of my RDP sessions? A: Use tools like NetFlow analyzers or Windows Performance Monitor to track RDP-specific network usage.

Q: Is it possible to use RDP over a slow internet connection? A: Yes, by optimizing settings like color depth, disabling visual effects, and using compression, RDP can be usable even on slower connections.

Section Summary

Advanced RDP features and optimizations can significantly enhance the remote desktop experience, especially in challenging network environments. By leveraging technologies like RemoteFX and RDP Shortpath, along with careful bandwidth optimization and performance monitoring, you can create a smooth and efficient remote work environment. Remember to regularly assess and adjust these optimizations to ensure they continue to meet your evolving needs.

Troubleshooting Common RDP Issues

Even with proper setup and optimization, RDP users may encounter issues from time to time. This section will guide you through common RDP problems and their solutions, helping you maintain a smooth remote desktop experience.

Connection Issues

Unable to Connect to Remote Computer

1. Check Network Connectivity: Ensure both client and server have internet access.
2. Verify RDP Service: Confirm the Remote Desktop service is running on the server.
3. Firewall Settings: Check if Windows Firewall or third-party firewalls are blocking RDP traffic.
4. Port Availability: Ensure the RDP port (default 3389) is open and not in use by another service.

# PowerShell command to check if RDP port is listening
Test-NetConnection -ComputerName localhost -Port 3389

Authentication Failures

1. Verify Credentials: Double-check username and password.
2. Account Lockout: Check if the account is locked due to multiple failed attempts.
3. NLA Issues: Ensure Network Level Authentication settings match between client and server.

Performance Problems

Slow or Laggy Connection

1. Bandwidth Check: Use a speed test to verify sufficient bandwidth.
2. Reduce Color Depth: Lower color quality to 16-bit in RDP client settings.
3. Disable Visual Effects: Turn off animations and desktop composition.
4. Check Server Load: Verify the server isn't overloaded with CPU or memory usage.

Screen Resolution Issues

1. Update Display Drivers: Ensure both client and server have up-to-date graphics drivers.
2. Adjust RDP Settings: Modify display settings in the RDP client.
3. RemoteFX Configuration: Check RemoteFX settings if using Windows Server.

Peripheral and Resource Redirection Problems

Printer Redirection Failure

1. Check Printer Drivers: Ensure compatible drivers are installed on both client and server.
2. Verify Group Policy: Check if Group Policy is restricting printer redirection.
3. Restart Print Spooler: Restart the Print Spooler service on both machines.

USB Device Not Recognized

1. Enable USB Redirection: Ensure USB redirection is enabled in RDP client settings.
2. Update USB Drivers: Install the latest drivers for the USB device.
3. Check Device Compatibility: Verify if the device is supported for RDP redirection.

Diagnosing RDP Issues

Using Event Viewer

1. Open Event Viewer on the server
2. Navigate to "Windows Logs" > "Application"
3. Look for events with source "TermService" or "RemoteDesktopServices"

Network Tracing

Use tools like Wireshark to capture and analyze RDP traffic:

1. Start a Wireshark capture
2. Apply the filter: tcp.port == 3389
3. Attempt the RDP connection
4. Analyze the captured packets for errors or anomalies

TildaVPS RDP Support

At TildaVPS, we offer:

• 24/7 technical support for RDP-related issues
• Automated monitoring and alerting for potential RDP problems
• Regular system health checks to prevent common RDP issues

Best Practices for RDP Troubleshooting

1. Document Issues: Keep a log of RDP problems and their solutions for future reference.
2. Regular Maintenance: Perform routine checks on RDP configurations and server health.
3. Stay Updated: Keep both client and server systems up to date with the latest patches and updates.
4. Test Alternatives: If persistent issues occur, consider testing alternative remote access solutions.

Mini-FAQ

Q: How can I determine if RDP issues are client-side or server-side? A: Try connecting from a different client device or network. If the issue persists, it's likely server-side. If it resolves, the problem is likely with the original client or network.

Q: What should I do if I'm locked out of RDP access to my server? A: If possible, use out-of-band management tools like IPMI or iDRAC. Alternatively, contact your hosting provider for assistance in accessing the server console.

Section Summary

Troubleshooting RDP issues requires a systematic approach, starting with basic connectivity checks and progressing to more advanced diagnostic techniques. By understanding common problems and their solutions, you can quickly resolve issues and maintain a reliable remote desktop environment. Remember that prevention is key – regular maintenance and monitoring can help avoid many common RDP problems before they impact your productivity.

The Future of RDP and Remote Access

As we look towards the future of remote desktop technology, several exciting trends and developments are shaping the landscape. Understanding these advancements can help organizations prepare for the evolving world of remote access and virtual desktops.

Emerging Technologies in Remote Access

Cloud-Based RDP Solutions

The shift towards cloud computing is influencing RDP technology:

• Azure Virtual Desktop (AVD): Microsoft's cloud-based desktop and app virtualization service.
• Amazon WorkSpaces: AWS's managed, secure cloud desktop service.
• Hybrid Solutions: Combining on-premises and cloud-based RDP infrastructures for flexibility and scalability.

AI and Machine Learning Integration

Artificial Intelligence and Machine Learning are being incorporated into RDP technologies:

• Predictive Performance Optimization: AI algorithms adjusting connection parameters in real-time for optimal performance.
• Anomaly Detection: ML models identifying unusual patterns in RDP usage to enhance security.
• Automated Troubleshooting: AI-powered systems diagnosing and resolving common RDP issues without human intervention.

Enhanced Security Measures

As cyber threats evolve, so do RDP security features:

• Zero Trust Architecture: Implementing strict identity verification for every person and device trying to access resources.
• Biometric Authentication: Integrating fingerprint, facial recognition, or other biometric factors for RDP access.
• Blockchain for Identity Management: Using blockchain technology to create more secure and decentralized identity verification systems.

Future RDP Protocols and Standards

RDP Over QUIC

The adoption of the QUIC transport protocol promises to improve RDP performance:

• Reduced connection establishment time
• Improved performance on unreliable networks
• Better multiplexing capabilities

WebRTC Integration

Web Real-Time Communication (WebRTC) technology is being explored for browser-based remote desktop solutions:

• No need for client software installation
• Cross-platform compatibility
• Potential for peer-to-peer connections reducing server load

Anticipated Improvements in User Experience

Seamless Multi-Device Support

Future RDP solutions are expected to offer:

• Effortless transition between devices (e.g., from desktop to mobile)
• Adaptive interfaces that optimize for different screen sizes and input methods
• Consistent user experience across all platforms

Virtual and Augmented Reality Integration

As VR and AR technologies mature, we may see:

• Virtual desktop environments in 3D space
• AR overlays for remote technical support
• Immersive collaborative workspaces accessible via RDP

Low-Latency Gaming and Graphics-Intensive Applications

Advancements in network technology and compression algorithms will enable:

• Cloud gaming services integrated with RDP
• Remote access to high-performance workstations for 3D rendering and CAD applications
• Near-native performance for graphics-intensive tasks over remote connections

TildaVPS's Vision for the Future of RDP

At TildaVPS, we're committed to staying at the forefront of RDP > technology:

• Investing in research and development for next-generation remote > access solutions
• Partnering with leading technology providers to integrate > cutting-edge features
• Focusing on scalable, secure, and high-performance RDP infrastructures

Preparing for the Future of Remote Access

1. Stay Informed: Keep up with the latest developments in RDP and remote access technologies.
2. Invest in Infrastructure: Ensure your network and systems can support emerging RDP technologies.
3. Prioritize Security: As remote work becomes more prevalent, robust security measures are crucial.
4. User Training: Prepare your team for new remote access paradigms and technologies.

Mini-FAQ

Q: Will traditional RDP be replaced by newer technologies in the near future? A: While new technologies are emerging, traditional RDP is likely to evolve rather than be completely replaced, incorporating new features and improvements over time.

Q: How will 5G networks impact the future of RDP? A: 5G networks promise lower latency and higher bandwidth, potentially enabling more responsive and feature-rich remote desktop experiences, especially for mobile users.

Section Summary

The future of RDP and remote access is bright, with advancements in cloud computing, AI, security, and network protocols paving the way for more efficient, secure, and user-friendly remote desktop experiences. As these technologies evolve, organizations must stay informed and adaptable to leverage the full potential of next-generation remote access solutions. By embracing these innovations, businesses can enhance productivity, improve security, and provide seamless remote work experiences for their employees.
