Learn how to configure routing on MikroTik devices, from basic static routes to advanced dynamic protocols like OSPF and BGP. This comprehensive guide includes step-by-step instructions, troubleshooting tips, and best practices for optimal network performance.

MikroTik

Introduction

MikroTik routers have become increasingly popular among network administrators, IT professionals, and even tech-savvy home users due to their powerful features, flexibility, and cost-effectiveness. Whether you're setting up a small home network or managing a complex enterprise infrastructure, understanding how to properly route traffic through a MikroTik device is essential for optimal network performance and security.

In this comprehensive guide, we'll walk through the fundamentals of MikroTik routing, from basic configuration to advanced techniques. By the end, you'll have the knowledge to confidently set up, optimize, and troubleshoot routing on your MikroTik device. TildaVPS offers specialized MikroTik servers that are perfect for implementing the routing strategies we'll discuss, giving you a reliable platform to build your network infrastructure.

Section 1: Understanding MikroTik Routing Fundamentals

What is MikroTik RouterOS?

Introduction to the Section: Before diving into routing configuration, it's important to understand what makes MikroTik unique in the networking world.

MikroTik RouterOS is a Linux-based operating system designed specifically for networking equipment. It transforms a regular computer or dedicated hardware (like MikroTik's RouterBoard devices) into a fully-featured router with capabilities that rival much more expensive enterprise solutions. RouterOS supports various routing protocols, firewall configurations, bandwidth management tools, and VPN options, making it incredibly versatile for different networking scenarios.

Technical Details: RouterOS is available in different license levels (from Level 3 to Level 6), with higher levels offering more advanced features and capabilities. For serious routing applications, Level 5 or 6 is typically recommended as they provide full routing protocol support.

Benefits and Applications: The primary advantage of MikroTik routing is the exceptional value-to-performance ratio. Organizations can implement enterprise-grade routing solutions at a fraction of the cost of traditional networking vendors. Additionally, RouterOS offers granular control over network traffic, allowing administrators to implement sophisticated routing policies based on various criteria.

Section Summary: MikroTik RouterOS provides a powerful, flexible platform for implementing various routing strategies at an affordable price point. Understanding its capabilities is the first step toward effective network configuration.

Mini-FAQ:

What hardware do I need to run MikroTik RouterOS?

RouterOS can run on MikroTik's dedicated hardware (RouterBoards) or can be installed on x86-based computers. For production environments, dedicated MikroTik hardware or a specialized MikroTik server from TildaVPS is recommended for reliability.

Is MikroTik RouterOS difficult to learn?

While RouterOS has a learning curve, its web interface (WebFig), command-line interface, and Winbox GUI tool provide multiple ways to interact with the system. With proper guidance like this article, even networking beginners can master the basics.

Section 2: Basic MikroTik Router Setup

Initial Configuration Steps

Introduction to the Section: Before configuring routing, you need to properly set up your MikroTik device with basic network parameters.

Explanation: Setting up a MikroTik router involves establishing connectivity, securing access, and preparing the device for routing configuration. This foundation ensures that your routing policies will function correctly once implemented.

Step-by-Step Instructions:

  1. Access your MikroTik router: Connect to your router using Winbox (recommended for beginners), WebFig, or SSH.

  2. Set a strong password: Navigate to System > Password and change the default password immediately.

  3. Configure interface IP addresses: Go to IP > Addresses and assign appropriate IP addresses to your interfaces.

  4. Set up DHCP (if needed): For local networks, configure DHCP servers under IP > DHCP Server.

  5. Configure DNS settings: Under IP > DNS, set primary and secondary DNS servers.

  6. Enable necessary services: Under IP > Services, enable only the services you need (SSH, Winbox, WebFig) and disable others for security.

  7. Update RouterOS: Go to System > Packages to check for and install updates.

Benefits and Applications: A properly configured MikroTik router provides a secure foundation for implementing routing policies. This initial setup ensures that your router is accessible, secure, and ready for more advanced configuration. Taking the time to properly set up your device will save you troubleshooting headaches later.

Section Summary: The initial setup of your MikroTik router establishes the foundation for all routing configurations. By properly configuring interfaces, security settings, and basic network parameters, you ensure that your routing policies will function as intended.

Mini-FAQ:

Should I use the web interface or Winbox for configuration?

Winbox generally provides a more user-friendly and responsive experience, especially for beginners. However, the web interface (WebFig) is useful when remote access is needed without installing additional software. For advanced users, the command-line interface offers the most powerful and scriptable configuration options.

How often should I update RouterOS?

Regular updates are recommended for security and feature improvements. However, in production environments, test updates on a non-critical device first to ensure compatibility with your configuration.

Section 3: Static Routing Configuration

Setting Up Basic Routes

Introduction to the Section: Static routing is the simplest form of routing where you manually define the paths that network traffic should take.

Explanation: Static routes are fixed pathways that tell your router how to reach specific networks. Unlike dynamic routing protocols, static routes don't adapt automatically to network changes but offer simplicity, predictability, and lower resource usage.

Technical Details: In MikroTik, static routes consist of a destination address (the network you want to reach), a gateway (the next hop router), and optional parameters like distance (administrative distance) and routing marks.

Step-by-Step Instructions for Configuring Static Routes:

  1. Access the routing menu: Open Winbox and navigate to IP > Routes.

  2. Add a new route: Click the "+" button to add a new static route.

  3. Configure destination network: Enter the destination network address and mask (e.g., 192.168.2.0/24).

  4. Set the gateway: Enter the IP address of the next hop router (e.g., 10.0.0.1).

  5. Configure distance (optional): Set the administrative distance if you have multiple routes to the same destination.

  6. Add a comment (recommended): Add a descriptive comment to help you remember the purpose of this route.

  7. Apply the configuration: Click "OK" to save the route.

  8. Verify the route: Check that the route appears in your routing table and test connectivity.

Benefits and Applications: Static routes are ideal for small networks with predictable topologies or for specific traffic engineering requirements. They're also useful for creating backup routes or directing specific traffic through alternative paths.

Section Summary: Static routing provides a straightforward way to control network traffic flow in MikroTik devices. While it lacks the adaptability of dynamic routing protocols, it offers simplicity and predictability that makes it suitable for many networking scenarios.

Mini-FAQ:

When should I use static routes instead of dynamic routing?

Static routes are preferable in small networks with few changes, when you need precise control over traffic paths, or when connecting to networks that don't support dynamic routing protocols. They're also useful as backup routes in case dynamic routing fails.

What happens if a static route's gateway becomes unreachable?

Unlike dynamic routing protocols, static routes don't automatically adapt to network changes. If a gateway becomes unreachable, traffic to the associated destination will fail unless you've configured backup routes or implemented route monitoring scripts.

Section 4: Dynamic Routing Protocols

Implementing OSPF and BGP

Introduction to the Section: Dynamic routing protocols allow routers to automatically discover network paths and adapt to changes, making them essential for larger or more complex networks.

Explanation: Unlike static routes, dynamic routing protocols enable routers to exchange information about network topology, allowing them to automatically determine the best paths for traffic. MikroTik RouterOS supports several dynamic routing protocols, with OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol) being the most commonly used.

Technical Details:

  • OSPF is an interior gateway protocol (IGP) that works well within a single organization's network. It uses the Dijkstra algorithm to calculate the shortest path to each network.
  • BGP is primarily used for routing between different organizations or autonomous systems (AS). It's the protocol that powers the internet's routing infrastructure.

Configuring OSPF on MikroTik

Step-by-Step Instructions:

  1. Enable OSPF: Navigate to Routing > OSPF > Instance and click the "+" button.

  2. Create an OSPF instance: Set a router ID (typically using one of your router's IP addresses) and click "OK".

  3. Configure OSPF areas: Go to the "Areas" tab, click "+", and create an area (usually start with area 0 as the backbone).

  4. Add networks to OSPF: Go to the "Networks" tab, click "+", and add the networks you want to advertise along with their corresponding areas.

  5. Configure interfaces: Go to the "Interfaces" tab to adjust interface-specific OSPF parameters if needed.

  6. Verify OSPF operation: Check the "Neighbors" tab to confirm that OSPF adjacencies are forming with other OSPF routers.

  7. Monitor OSPF routes: Go to IP > Routes and look for routes with an "O" in the protocol column to verify OSPF routes are being learned.

Configuring BGP on MikroTik

Step-by-Step Instructions:

  1. Enable BGP: Navigate to Routing > BGP > Instances and click the "+" button.

  2. Create a BGP instance: Set your autonomous system (AS) number and router ID, then click "OK".

  3. Configure BGP peers: Go to the "Peers" tab, click "+", and add the IP address and AS number of each BGP neighbor.

  4. Define networks to advertise: Go to the "Networks" tab and add the networks you want to advertise to BGP peers.

  5. Configure route filters (optional): Use routing filters to control which routes are accepted from or advertised to peers.

  6. Verify BGP operation: Check the "Peers" tab to confirm that BGP sessions are established.

  7. Monitor BGP routes: Go to IP > Routes and look for routes with a "B" in the protocol column to verify BGP routes are being learned.

Benefits and Applications: Dynamic routing protocols significantly reduce administrative overhead in larger networks by automatically adapting to network changes. They provide redundancy, load balancing, and faster convergence when network failures occur.

Section Summary: Dynamic routing protocols like OSPF and BGP provide automated, adaptive routing capabilities for MikroTik networks. While they require more initial configuration than static routes, they offer significant advantages in terms of scalability, redundancy, and maintenance in medium to large networks.

Mini-FAQ:

Should I use OSPF or BGP for my network?

Use OSPF for routing within your organization's network (internal routing). Use BGP when connecting to external networks, multiple ISPs, or when you need more control over route selection and filtering. In many cases, larger networks use both: OSPF internally and BGP for external connections.

How do I troubleshoot dynamic routing issues?

Check for established neighbor relationships first, as this is the foundation of dynamic routing. Verify that network statements match on both sides, authentication is consistent (if used), and timers are compatible. MikroTik's logging features can provide valuable debugging information for routing protocol issues.

Section 5: Advanced Routing Techniques

Policy-Based Routing and Route Filtering

Introduction to the Section: Beyond basic static and dynamic routing, MikroTik offers powerful advanced routing capabilities that allow for sophisticated traffic management.

Explanation: Policy-based routing (PBR) allows you to route packets based on criteria other than the destination address, such as source address, connection marks, or packet content. Route filtering enables you to control which routes are accepted or advertised, providing granular control over your routing table.

Technical Details: MikroTik implements policy-based routing through a combination of firewall mangle rules (to mark packets) and routing marks (to apply specific routing decisions to marked packets). Route filters use prefix lists and route maps to control route propagation.

Configuring Policy-Based Routing

Step-by-Step Instructions:

  1. Create a routing mark: Go to IP > Firewall > Mangle and click "+".

  2. Define matching criteria: Set conditions to match the traffic you want to route differently (e.g., source address, protocol, port).

  3. Apply a routing mark: Set the action to "mark routing" and specify a distinctive mark name.

  4. Create a marked route: Go to IP > Routes, click "+", and create a route with the same routing mark you defined earlier.

  5. Set the gateway: Specify which gateway this marked traffic should use.

  6. Test the configuration: Generate traffic that matches your criteria and verify it follows the expected path.

Implementing Route Filtering

Step-by-Step Instructions:

  1. Create a routing filter: Navigate to Routing > Filters and click "+".

  2. Define filter chain: Set the chain name (e.g., "bgp-in" for incoming BGP routes).

  3. Configure filter rules: Add rules to match specific prefixes or route attributes.

  4. Set actions: Specify whether to accept, discard, or modify matched routes.

  5. Apply the filter: In your routing protocol configuration (e.g., BGP peer settings), reference the filter chain you created.

  6. Verify filter operation: Check your routing table to confirm that only the expected routes are present.

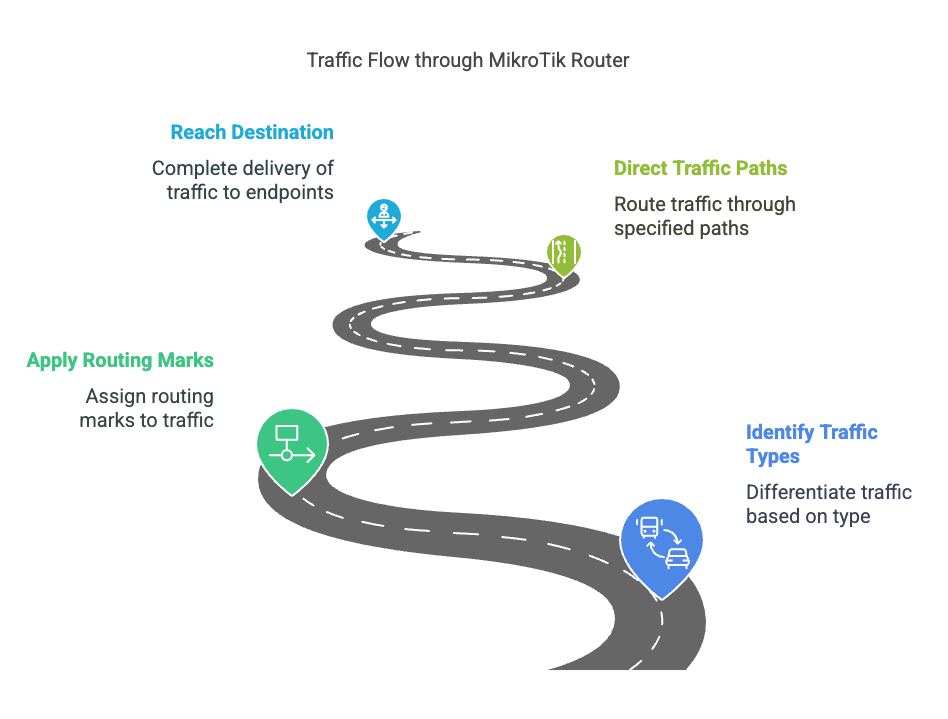

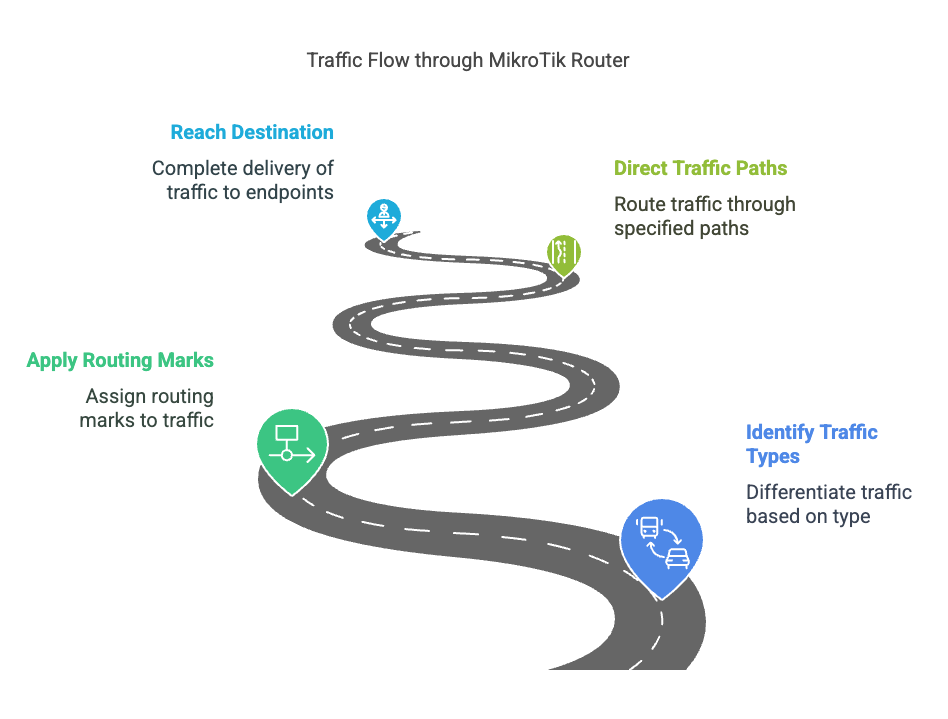

Diagram showing the flow of traffic through a MikroTik router with policy-based routing, illustrating how different traffic types follow different paths based on routing marks

Benefits and Applications: Advanced routing techniques allow for sophisticated traffic engineering, load balancing across multiple connections, implementing failover scenarios, and enforcing security policies through routing decisions.

Section Summary: Policy-based routing and route filtering extend MikroTik's routing capabilities beyond traditional destination-based routing, enabling complex traffic management scenarios that would otherwise be impossible with basic routing alone.

Mini-FAQ:

How can I use policy-based routing for load balancing?

You can mark different types of traffic with different routing marks and then create multiple routes with these marks pointing to different gateways. This allows you to distribute traffic across multiple internet connections based on traffic type, source, or other criteria.

Can I combine policy-based routing with QoS?

Yes, this is a powerful combination. You can use policy-based routing to direct different types of traffic through specific paths, and then apply QoS rules to prioritize traffic within those paths. This gives you multi-layered traffic management capabilities.

Section 6: Routing for VPN and Tunneled Traffic

Integrating VPNs with MikroTik Routing

Introduction to the Section: Virtual Private Networks (VPNs) require special routing considerations to ensure traffic flows correctly through encrypted tunnels.

Explanation: When implementing VPNs on MikroTik, proper routing configuration is essential to direct traffic through the encrypted tunnels. This involves setting up routes for remote networks and potentially implementing policy-based routing to determine which traffic should be encrypted.

Technical Details: MikroTik supports various VPN technologies including IPsec, OpenVPN, L2TP/IPsec, and PPTP. Each requires specific routing configurations to function correctly.

Configuring Routing for IPsec VPNs

Step-by-Step Instructions:

  1. Set up the IPsec tunnel: Configure your IPsec policies and proposals under IP > IPsec.

  2. Create routes to remote networks: Add static routes pointing to remote networks via the IPsec peer address.

  3. Configure policy-based routing (optional): Use mangle rules to mark specific traffic for VPN routing.

  4. Set up firewall rules: Allow IPsec-related protocols (ESP, AH, IKE) through your firewall.

  5. Test connectivity: Verify that traffic to remote networks traverses the IPsec tunnel.

  6. Monitor the tunnel: Use Tools > IPsec to monitor the status of your IPsec security associations.

Routing with OSPF over VPN Tunnels

Step-by-Step Instructions:

  1. Configure the VPN tunnel: Set up your preferred VPN technology (IPsec, OpenVPN, etc.).

  2. Enable OSPF on the tunnel interface: Add the tunnel interface to your OSPF configuration.

  3. Adjust OSPF interface parameters: Set appropriate OSPF timers and network type for the tunnel.

  4. Verify OSPF adjacency: Check that OSPF forms a neighbor relationship across the tunnel.

  5. Monitor route exchange: Verify that routes are being exchanged through the tunnel.

  6. Implement route filtering (optional): Control which routes are advertised or accepted over the VPN.

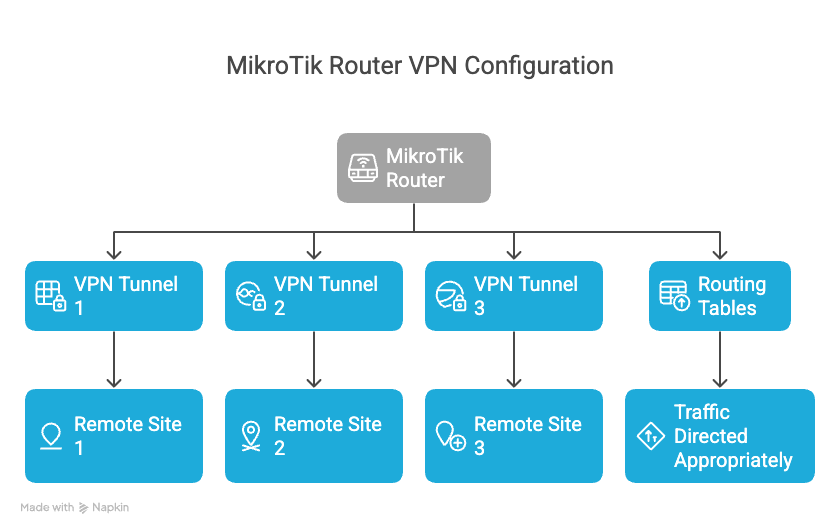

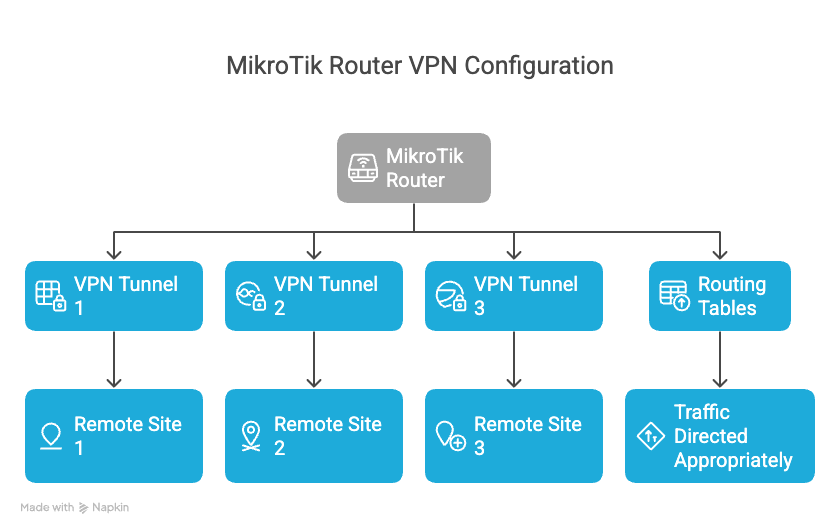

Image: Network diagram showing a MikroTik router with multiple VPN tunnels to remote sites, with routing tables highlighting how traffic is directed through the appropriate tunnels.

Benefits and Applications: Properly configured VPN routing enables secure communication between distributed networks, remote access for mobile users, and secure transit across untrusted networks like the internet.

Section Summary: Integrating VPNs with MikroTik routing requires careful configuration of both the VPN technology and the associated routing policies. When properly implemented, this creates secure, encrypted paths for sensitive traffic while maintaining connectivity to all required networks.

Mini-FAQ:

How do I troubleshoot routing issues with VPNs?

Start by verifying that the VPN tunnel is established and stable. Then check that routes to remote networks are present in the routing table and pointing to the correct VPN interface or peer. Use ping and traceroute tools with the "routing-table" parameter to test specific routing paths.

Can I run multiple VPN technologies simultaneously on a MikroTik router?

Yes, MikroTik RouterOS supports running multiple VPN technologies concurrently. You can have IPsec, OpenVPN, and other VPN types operating simultaneously, each with its own routing configuration. This is useful for supporting different client requirements or implementing layered security.

Section 7: Troubleshooting MikroTik Routing Issues

Diagnosing and Resolving Common Routing Problems

Introduction to the Section: Even with careful configuration, routing issues can arise. Knowing how to diagnose and resolve these problems is essential for maintaining a reliable network.

Explanation: Routing problems typically manifest as connectivity issues, suboptimal paths, or intermittent failures. MikroTik provides several tools to help identify and resolve these issues.

Technical Details: Common routing issues include missing routes, incorrect next-hop addresses, routing loops, asymmetric routing, and route flapping. MikroTik's diagnostic tools help identify these problems through routing table analysis, traffic tracing, and protocol-specific debugging.

Step-by-Step Troubleshooting Process:

  1. Verify physical connectivity: Ensure all interfaces show the correct link status under Interfaces.

  2. Check the routing table: Go to IP > Routes to examine all active routes.

  3. Use ping and traceroute: Test connectivity with Tools > Ping and Tools > Traceroute.

  4. Examine protocol status: For dynamic routing, check neighbor relationships and protocol-specific statistics.

  5. Review firewall rules: Ensure firewall rules aren't blocking legitimate routing traffic.

  6. Check system logs: Go to System > Logs to look for relevant error messages.

  7. Use packet sniffer: For deeper analysis, use Tools > Packet Sniffer to capture and examine routing protocol packets.

  8. Implement fixes: Based on your findings, adjust route configurations, protocol parameters, or firewall rules as needed.

  9. Verify resolution: Test connectivity again to confirm the issue is resolved.

Benefits and Applications: Effective troubleshooting skills minimize network downtime and ensure optimal routing performance. Understanding how to quickly identify and resolve routing issues is crucial for maintaining reliable network operations.

Section Summary: Troubleshooting routing issues requires a systematic approach and familiarity with MikroTik's diagnostic tools. By methodically examining the routing table, testing connectivity, and analyzing protocol behavior, most routing problems can be identified and resolved efficiently.

Mini-FAQ:

How can I identify which route is being used for specific traffic?

Use the /ip route get command followed by the destination address to see exactly which route will be used. This is particularly helpful when you have overlapping routes or policy-based routing configured.

What should I do if dynamic routing protocols keep flapping?

Check for unstable links, mismatched timers, or excessive route advertisements. Increasing hello and dead intervals can help stabilize connections over less reliable links. Implementing route summarization and proper filtering can also reduce route flapping.

Conclusion

Mastering MikroTik routing opens up powerful possibilities for network design and optimization. From basic static routes to sophisticated policy-based routing and dynamic protocols, MikroTik RouterOS provides the tools needed to implement virtually any routing scenario. The key to success lies in understanding the fundamentals, following best practices, and knowing how to troubleshoot effectively when issues arise.

Throughout this guide, we've covered the essential aspects of MikroTik routing, from initial setup to advanced techniques. By applying these concepts to your network, you can achieve more reliable connectivity, better performance, and enhanced security. Remember that routing is both an art and a science – while following the technical steps is important, understanding the underlying principles allows you to design creative solutions to complex networking challenges.

TildaVPS offers specialized MikroTik servers that provide an ideal platform for implementing the routing strategies we've discussed. Whether you're looking to set up a simple VPN server or design a complex multi-homed network with dynamic routing, TildaVPS's MikroTik solutions give you the performance and reliability needed for mission-critical networking applications. Contact TildaVPS to learn more about their MikroTik server offerings and how they can support your networking needs.

Frequently Asked Questions (FAQ)

Key Takeaways

  • MikroTik RouterOS provides enterprise-grade routing capabilities at a fraction of the cost of traditional networking vendors, making it ideal for businesses of all sizes.

  • Both static and dynamic routing protocols (OSPF, BGP) are fully supported in MikroTik, allowing for flexible network design from simple to complex topologies.

  • Policy-based routing extends MikroTik's capabilities beyond destination-based routing, enabling sophisticated traffic engineering based on multiple criteria.

  • VPN integration with proper routing configuration creates secure communication channels for remote access and site-to-site connectivity.

  • Systematic troubleshooting using MikroTik's built-in diagnostic tools helps quickly identify and resolve routing issues, minimizing network downtime.

Glossary

  • RouterOS: MikroTik's Linux-based operating system designed for networking equipment.

  • OSPF (Open Shortest Path First): A link-state routing protocol used for interior gateway routing within a single autonomous system.

  • BGP (Border Gateway Protocol): An exterior gateway protocol used for routing between autonomous systems, primarily used on the internet.

  • Policy-Based Routing (PBR): Routing decisions based on criteria other than the destination address, such as source address or packet characteristics.

  • ECMP (Equal Cost Multi-Path): A routing strategy where packets to the same destination can be forwarded through multiple paths of equal cost.

  • Route Filtering: The process of controlling which routes are accepted or advertised by a router.

  • Administrative Distance: A value assigned to routes from different sources to determine preference when multiple routes to the same destination exist.

  • Autonomous System (AS): A collection of connected IP networks under the control of a single entity that presents a common routing policy to the internet.

Further Reading

OSPFRouterOSRoutingVPN
