Introduction
In the ever-evolving landscape of remote access technologies, two terms often come up in discussions: Windows Remote Desktop Protocol (RDP) and Remote Desktop Services (RDS). While these technologies are related and sometimes used interchangeably, they serve distinct purposes and have unique characteristics. Understanding the differences between RDP and RDS is crucial for IT professionals, business owners, and anyone involved in setting up remote access solutions.
This comprehensive guide will delve into the intricacies of Windows RDP and Remote Desktop Services, exploring their features, use cases, and key differences. By the end of this article, you'll have a clear understanding of when to use each technology and how they can benefit your organization's remote access strategy.
Understanding Windows RDP
Windows Remote Desktop Protocol (RDP) is a proprietary protocol developed by Microsoft that provides users with a graphical interface to connect to another computer over a network connection. It's a fundamental technology that enables remote desktop connections in Windows environments.
Key Features of RDP:
- Graphical User Interface: Allows users to see and interact with a remote desktop as if they were sitting in front of it.
- Multi-Monitor Support: Supports multiple monitor configurations for both local and remote systems.
- Audio and Video Streaming: Enables audio and video playback on the remote session.
- File System Redirection: Allows access to local files and folders from the remote session.
- Printer Redirection: Enables printing from the remote session to a local printer.

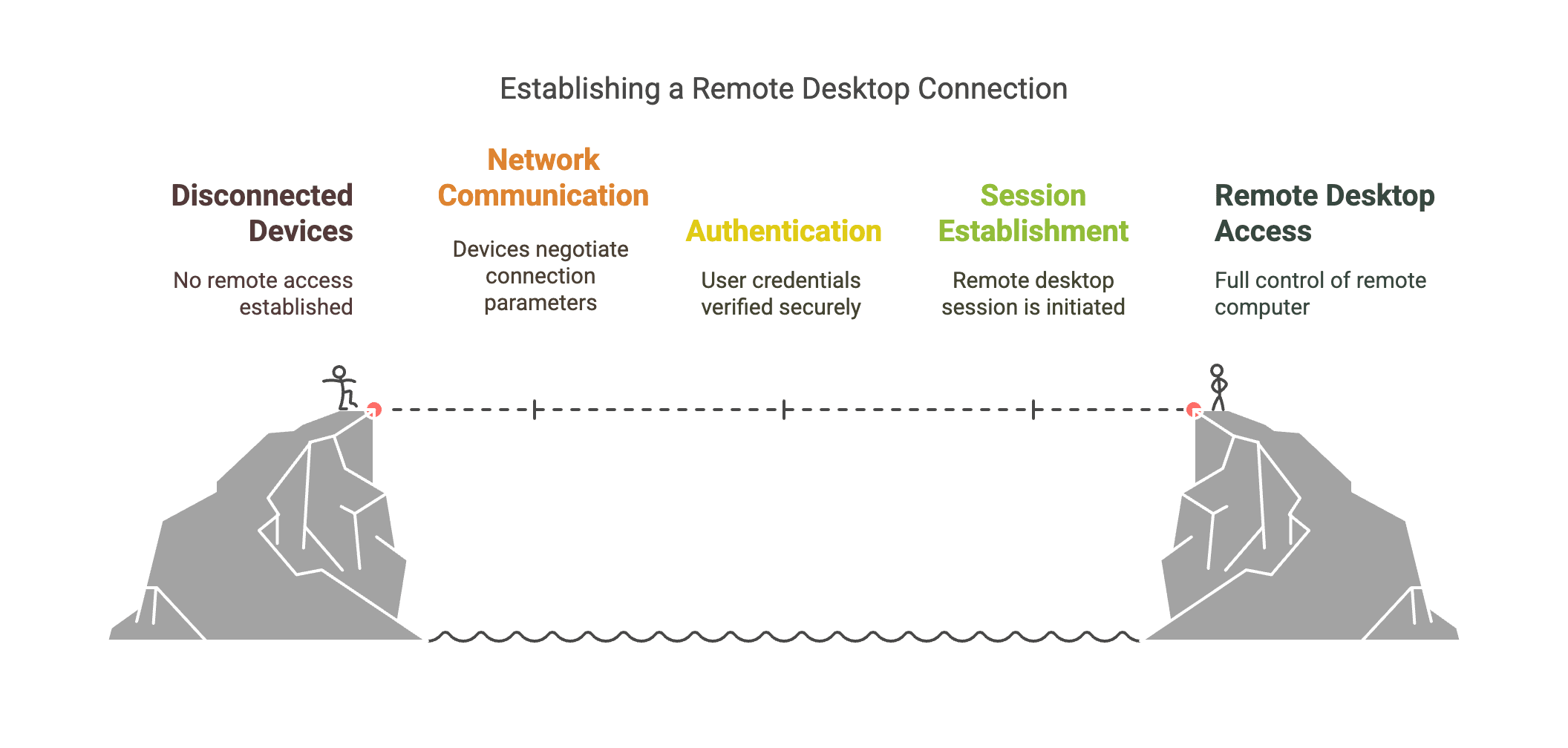

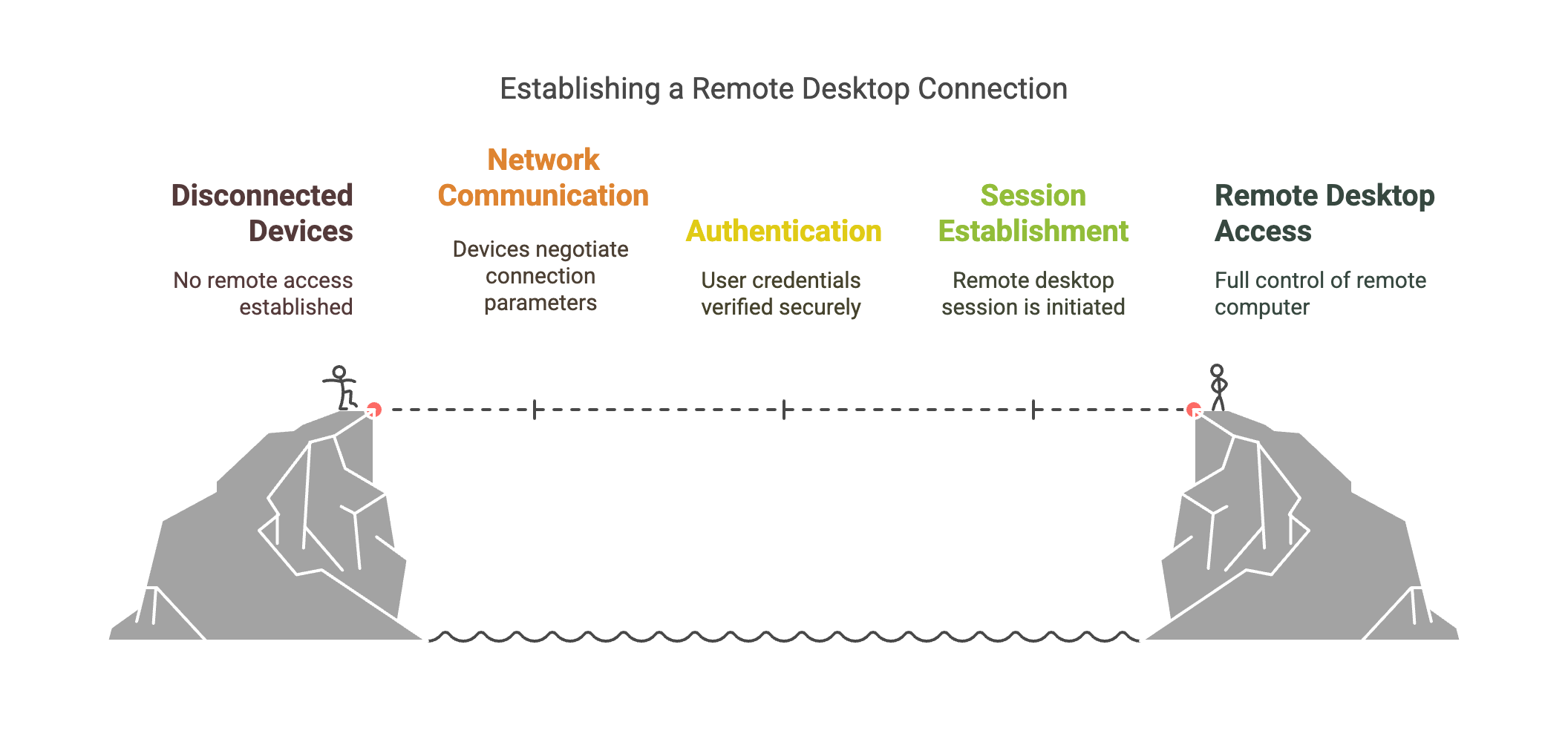

How RDP Works:
- The RDP client initiates a connection to the RDP server.
- The server authenticates the client.
- Once authenticated, the server sends graphical output to the client.
- The client sends keyboard and mouse inputs back to the server.
Key Takeaway: RDP is the underlying protocol that enables remote desktop connections, providing a seamless way to interact with a remote Windows machine.
RDP is built into Windows operating systems and is widely used for remote administration, remote work, and accessing home computers from afar. However, it's important to note that RDP itself is just the protocol, and its capabilities can be extended when used in conjunction with other technologies like Remote Desktop Services.
Exploring Remote Desktop Services
Remote Desktop Services (RDS), formerly known as Terminal Services, is a server role in Windows Server operating systems that builds upon the RDP protocol to provide a more comprehensive remote access solution for enterprises.

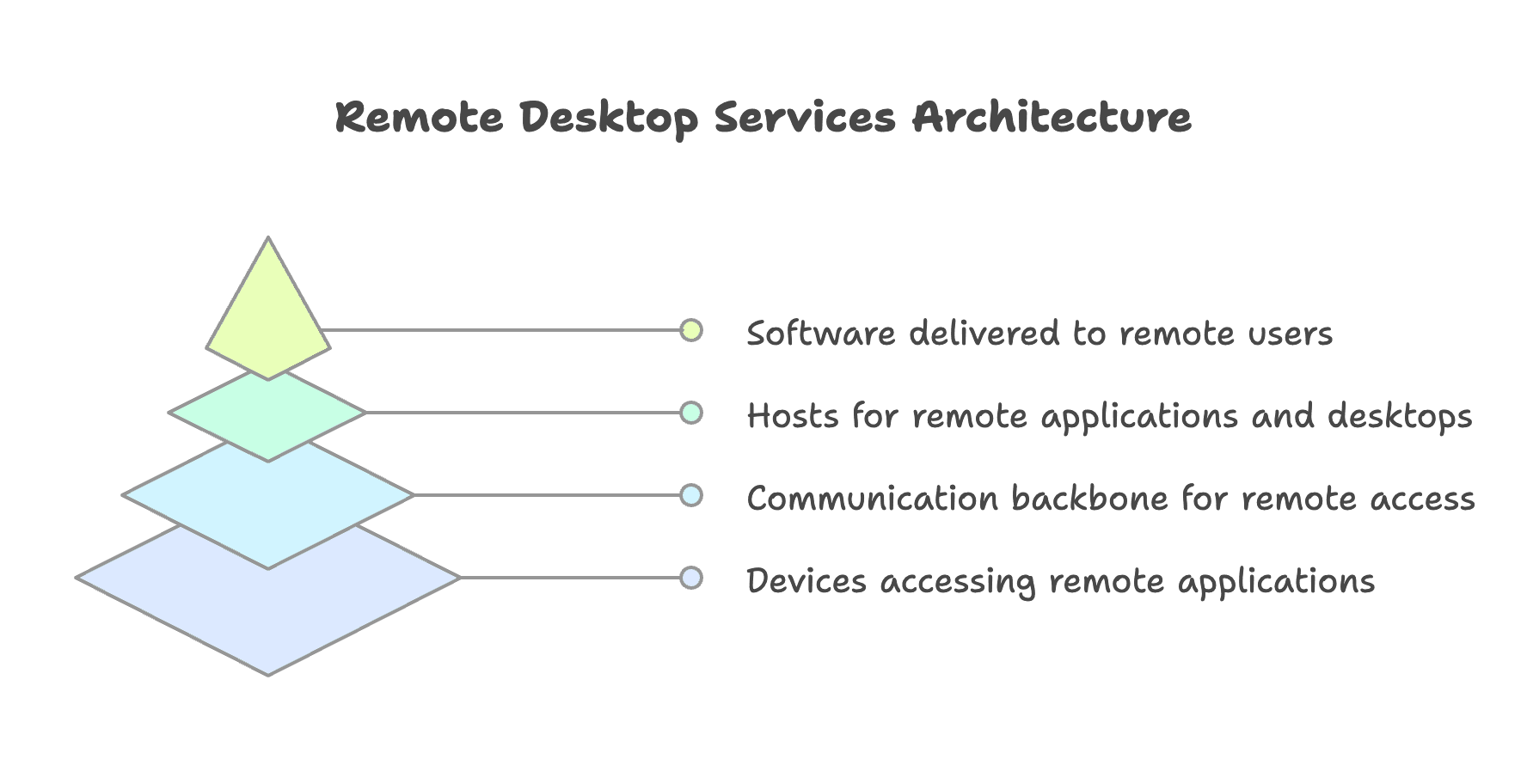

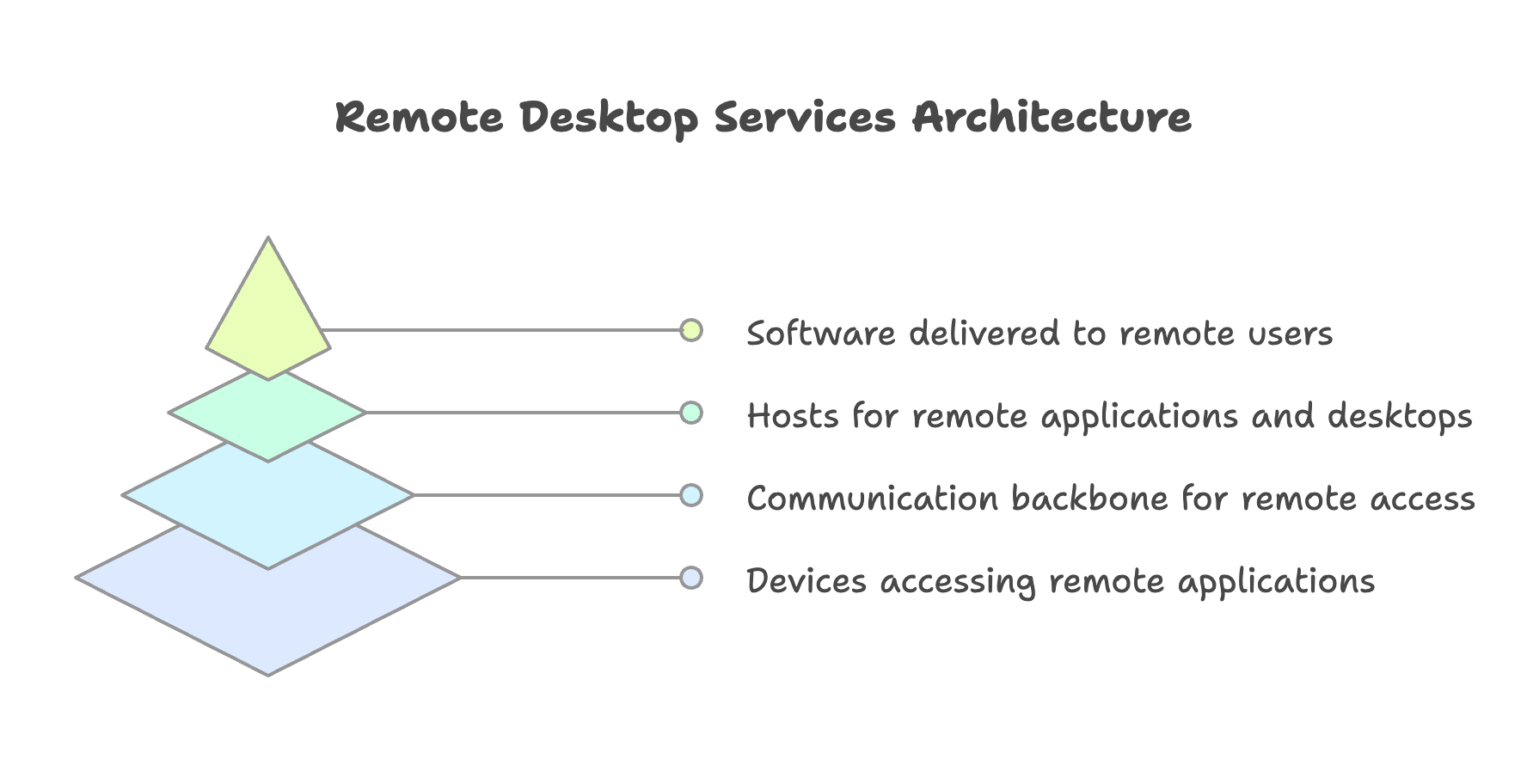

Components of RDS:
- Remote Desktop Session Host (RDSH): Hosts Windows desktop environments or applications that users can access remotely.
- Remote Desktop Web Access (RDWA): Provides a web interface for accessing remote desktops and applications.
- Remote Desktop Gateway (RDG): Enables secure access to internal network resources over the internet.
- Remote Desktop Connection Broker (RDCB): Manages connections to remote desktops and applications.
- Remote Desktop Virtualization Host (RDVH): Allows hosting of virtual desktops using Hyper-V.
Key Features of RDS:
- Centralized Application Deployment: Deploy and manage applications from a central location.
- Session-Based Desktops: Multiple users can connect to a single server, each with their own session.
- Virtual Desktop Infrastructure (VDI): Provision and manage individual virtual machines for users.
- Load Balancing: Distribute user sessions across multiple servers for improved performance.
- Licensing Management: Centralized management of RDS client access licenses (CALs).
Quick Tip: RDS can significantly reduce IT management overhead by centralizing application deployment and desktop management.
Remote Desktop Services expands on the capabilities of RDP to provide a scalable, enterprise-grade remote access solution. It's designed to support multiple concurrent users and offers more advanced management and deployment options compared to basic RDP connections.
Key Differences Between RDP and RDS
While RDP and RDS are closely related, they serve different purposes and have distinct characteristics. Understanding these differences is crucial for choosing the right solution for your needs.
1. Scope and Purpose
-
RDP:
- A protocol for remote connections
- Typically used for one-to-one connections
- Built into Windows operating systems
-
RDS:
- A comprehensive server role and service
- Designed for many-to-one or many-to-many connections
- Requires Windows Server operating systems
2. Scalability
-
RDP:
- Limited to a single user per session on desktop operating systems
- Suitable for individual remote access needs
-
RDS:
- Supports multiple concurrent users
- Designed for enterprise-scale deployments
3. Licensing
-
RDP:
- Included with Windows operating systems
- No additional licensing required for basic use
-
RDS:
- Requires Remote Desktop Services Client Access Licenses (RDS CALs)
- More complex licensing model based on number of users or devices
4. Management Capabilities
-
RDP:
- Basic management through Windows settings
- Limited centralized control
-
RDS:
- Advanced management through Server Manager and PowerShell
- Centralized control of user sessions, applications, and resources
5. Application Delivery
-
RDP:
- Provides access to the entire desktop environment
-
RDS:
- Supports RemoteApp for delivering individual applications
- Allows for more granular control over what users can access
Comparison Table
| Feature | Windows RDP | Remote Desktop Services |
|---|---|---|
| Purpose | Individual remote access | Enterprise-scale remote access |
| Scalability | Limited (1 user per session) | High (multiple concurrent users) |
| Licensing | Included with Windows | Requires additional RDS CALs |
| Management | Basic | Advanced, centralized |
| Application Delivery | Full desktop only | Full desktop or individual apps |
Key Takeaway: While RDP is the underlying protocol used by both technologies, RDS builds upon RDP to provide a more robust, scalable, and manageable solution for enterprise environments.
Understanding these differences is crucial for making informed decisions about which technology to implement in your organization. In the next section, we'll explore specific use cases for each technology.
Use Cases and Scenarios
Choosing between RDP and RDS depends on your specific needs and the scale of your remote access requirements. Let's explore some common use cases for each technology.
Windows RDP Use Cases:
-
Remote Administration:
- IT professionals accessing servers or workstations for maintenance
- Small business owners managing office computers from home
-
Work from Home (Individual):
- Employees accessing their office desktop from a home computer
- Freelancers connecting to a more powerful work machine
-
Personal Remote Access:
- Accessing a home computer while traveling
- Students connecting to a dorm room computer from elsewhere on campus
-
Small Team Collaboration:
- Small teams sharing access to a specific workstation for collaborative projects
Remote Desktop Services Use Cases:
-
Enterprise-Wide Remote Work:
- Large organizations providing remote access to corporate resources for hundreds or thousands of employees
-
Application Virtualization:
- Delivering specific applications to users without installing them on local machines
- Ensuring all users have access to the latest version of critical software
-
Virtual Desktop Infrastructure (VDI):
- Providing personalized virtual desktops to users across an organization
- Supporting bring-your-own-device (BYOD) initiatives
-
Education and Training:
- Universities offering virtual lab environments to students
- Training centers providing consistent software environments to trainees
-
Call Centers and Customer Support:
- Providing agents with access to necessary applications and resources
- Easily scaling up or down based on demand
Quick Tip: For TildaVPS users, our VPS solutions can be configured to support both RDP for individual access and RDS for more complex, multi-user scenarios.
When deciding between RDP and RDS, consider factors such as the number of users, the need for application virtualization, and your organization's IT management capabilities. RDP is often sufficient for small-scale needs, while RDS provides the scalability and management features required for larger deployments.
Performance and Scalability Considerations
When implementing remote access solutions, performance and scalability are critical factors to consider. Both RDP and RDS have different characteristics in these areas.
RDP Performance:
-
Network Bandwidth: RDP performance is highly dependent on available bandwidth. A minimum of 1 Mbps is recommended for a basic experience, with 2 Mbps or more for optimal performance.
-
Latency: RDP is sensitive to network latency. Latency under 100ms provides a good user experience, while anything over 200ms can lead to noticeable delays.
-
Graphics Performance: RDP supports various compression algorithms and can adapt to different network conditions. However, graphics-intensive applications may still experience performance issues.
-
Local Resources: The performance of the remote machine directly impacts the RDP experience. Adequate CPU, RAM, and storage are crucial.
RDS Scalability and Performance:
-
User Density: RDS can support a high number of concurrent users on a single server. The exact number depends on the server's resources and the applications being used.
-
Load Balancing: RDS includes features for distributing user sessions across multiple servers, improving overall performance and reliability.
-
Resource Allocation: RDS allows for fine-grained control over resource allocation, ensuring critical applications get the resources they need.
-
RemoteApp Performance: By delivering only specific applications rather than full desktops, RemoteApp can provide better performance for certain use cases.
Performance Optimization Tips:
- Use RDP over UDP for improved performance in high-latency environments.
- Implement RDS Fair Share CPU Scheduling to prevent a single user from monopolizing resources.
- Utilize RemoteFX for improved graphics performance in RDS environments.
- Consider using thin clients or zero clients for optimal RDS performance.
Key Takeaway: While RDP can provide excellent performance for individual connections, RDS offers superior scalability and more advanced performance optimization options for multi-user environments.
At TildaVPS, we offer high-performance VPS solutions that can be optimized for both RDP and RDS scenarios. Our infrastructure is designed to provide the low latency and high bandwidth necessary for smooth remote desktop experiences.
Security Implications
Security is a critical concern when implementing any remote access solution. Both RDP and RDS have security considerations that need to be addressed.
RDP Security:
-
Encryption: RDP uses RC4 cipher with a 128-bit key for encryption by default. TLS can be enabled for additional security.
-
Authentication: Supports Network Level Authentication (NLA) to require user authentication before establishing a remote desktop connection.
-
Vulnerabilities: RDP has been the target of several high-profile vulnerabilities, such as BlueKeep. Regular patching is crucial.
-
Exposure: Directly exposing RDP to the internet is risky. It's recommended to use a VPN or Remote Desktop Gateway.
RDS Security:
-
Gateway Services: RDS includes Remote Desktop Gateway, which provides an additional layer of security and eliminates the need to expose RDP directly to the internet.
-
Centralized Management: Easier to implement and enforce security policies across multiple users and sessions.
-
Application Isolation: RemoteApp allows for delivering specific applications without giving users access to the entire desktop environment.
-
Enhanced Authentication: Supports multi-factor authentication and integration with Active Directory.

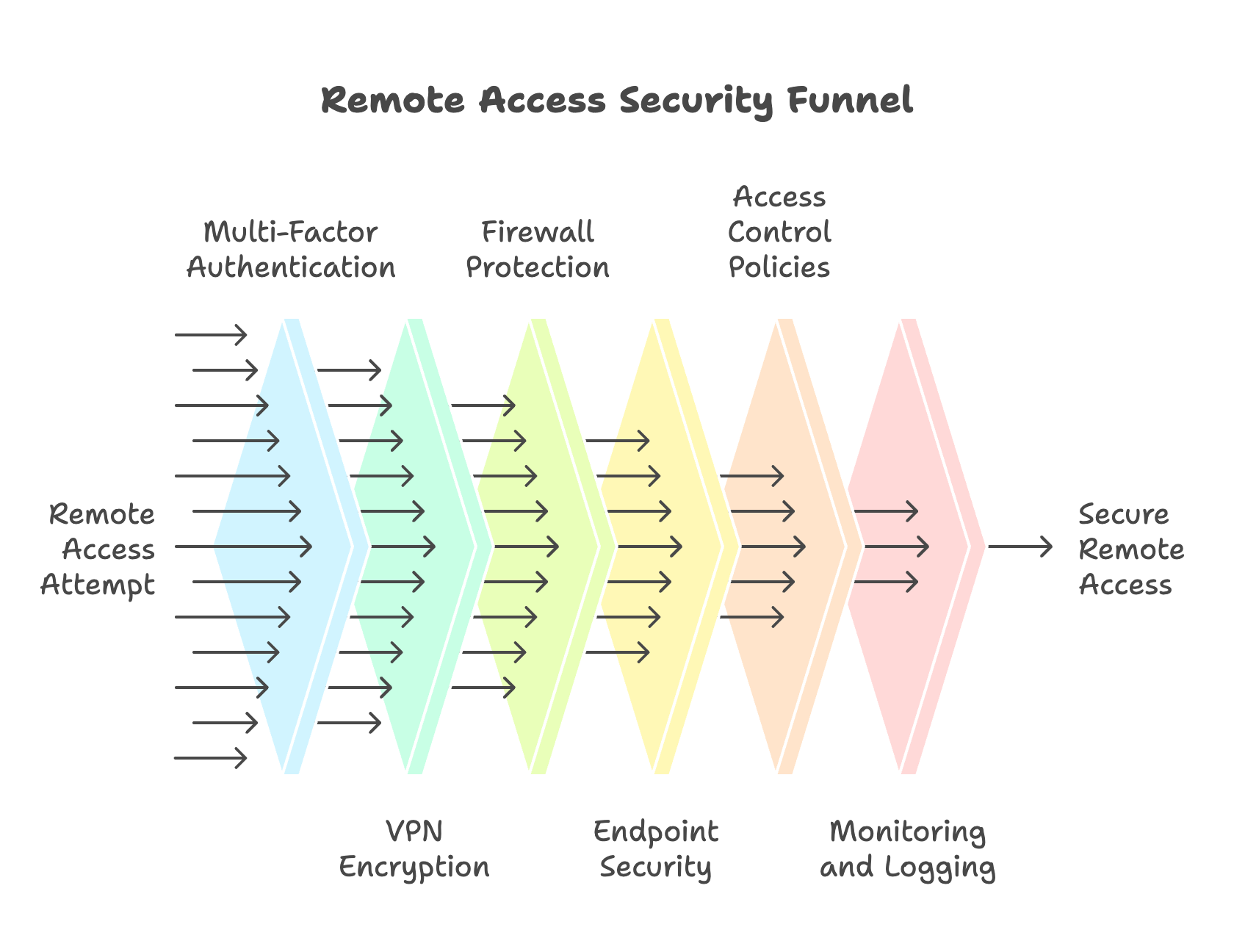

Best Practices for Securing Remote Access:
- Use strong, unique passwords and implement multi-factor authentication.
- Keep systems and applications up to date with the latest security patches.
- Implement network segmentation to isolate remote access systems.
- Use firewalls and intrusion detection/prevention systems.
- Enable logging and regularly monitor for suspicious activities.
- Consider using third-party security solutions designed for remote access scenarios.
Quick Tip: TildaVPS offers built-in firewall solutions and VPN options to enhance the security of your remote access setup, whether you're using RDP or RDS.
While both RDP and RDS can be secured with proper configuration, RDS generally offers more robust security features out of the box, particularly for large-scale deployments. However, the security of any remote access solution ultimately depends on proper implementation and ongoing management.
Conclusion
As we've explored throughout this article, Windows RDP and Remote Desktop Services are powerful technologies that enable remote access to Windows environments. While they share some similarities, they serve different purposes and are suited to different scales of deployment.
Key points to remember:
- RDP is the underlying protocol used for remote desktop connections, suitable for individual or small-scale use.
- RDS is a comprehensive server role that builds upon RDP to provide enterprise-scale remote access solutions.
- RDP is included with Windows operating systems, while RDS requires Windows Server and additional licensing.
- RDS offers superior scalability, management features, and security options compared to basic RDP.
- The choice between RDP and RDS depends on factors such as the number of users, required features, and IT management capabilities.
Whether you're an individual user looking to access your home computer remotely, or an enterprise IT administrator planning a large-scale remote work solution, understanding the differences between RDP and RDS is crucial for making informed decisions.
At TildaVPS, we understand the importance of flexible and secure remote access solutions. Our high-performance VPS offerings are designed to support both RDP and RDS scenarios, providing the reliability, speed, and security needed for seamless remote desktop experiences. Whether you're implementing a simple RDP setup or a complex RDS environment, our infrastructure and support team are here to ensure your success.
We encourage you to explore how TildaVPS can support your remote access needs. Whether you're looking to set up a single remote desktop or planning a large-scale RDS deployment, our solutions can be tailored to meet your specific requirements.
For more information on how TildaVPS can enhance your remote access capabilities, please visit our website or contact our support team. Let us help you unlock the full potential of remote desktop technologies in your organization.
FAQ
-
Can I use RDP on a home version of Windows?
Windows Home editions include the RDP client, allowing you to connect to other computers. However, they do not include the RDP server component, meaning you cannot host remote desktop sessions on a Home edition. To host RDP sessions, you need Windows Pro, Enterprise, or a Server edition.
-
How many concurrent users can connect using RDP vs. RDS?
With standard RDP on a Windows desktop OS, only one user can be connected at a time. When someone connects remotely, the local session is locked. RDS, on the other hand, is designed for multiple concurrent users. The number of concurrent users on RDS depends on the server's resources and licensing, but it can support hundreds of simultaneous connections.
-
Is RDS more secure than basic RDP?
RDS generally offers more robust security features than basic RDP. It includes technologies like Remote Desktop Gateway, which provides an additional layer of security. RDS also offers more granular control over user permissions and easier implementation of security policies. However, both RDP and RDS can be secured with proper configuration and best practices.
-
Can I use RDS without a Windows Server license?
No, RDS requires a Windows Server operating system. It's not available on desktop versions of Windows. Additionally, you'll need to purchase Remote Desktop Services Client Access Licenses (RDS CALs) for each user or device that will be connecting to the RDS server.
-
How does RemoteApp differ from full desktop access?
RemoteApp, a feature of RDS, allows you to deliver individual applications to users rather than a full desktop environment. This can provide better performance and a more seamless experience, as the application appears to run locally on the user's machine. It's particularly useful when users only need access to specific applications rather than an entire desktop.
-
What are the bandwidth requirements for RDP and RDS?
The bandwidth requirements can vary depending on the type of work being done. For basic office tasks, Microsoft recommends a minimum of 1 Mbps per user for both RDP and RDS. However, for a good experience, especially with multimedia or graphics-intensive applications, 2 Mbps or more per user is recommended. RDS can be more efficient in some scenarios due to its ability to optimize application delivery and resource usage across multiple users.
-
Can I use RDP or RDS on non-Windows devices?
Yes, there are RDP clients available for various operating systems, including macOS, iOS, Android, and Linux. Microsoft provides official Remote Desktop clients for these platforms. For RDS, users can access remote desktops and applications through a web browser using Remote Desktop Web Access, making it accessible from virtually any device with a modern web browser.
-
How does licensing work for RDP vs. RDS?
RDP is included with Windows operating systems and doesn't require additional licensing for basic use. However, RDS requires specific licensing:
- Windows Server license for the host server
- Remote Desktop Services Client Access Licenses (RDS CALs) for each user or device
- Possible additional licenses for specific features or deployments (e.g., VDI)
RDS licensing can be complex, so it's important to consult with a Microsoft licensing specialist or authorized reseller to ensure compliance.
-
Can I use RDP or RDS in a cloud environment?
Yes, both RDP and RDS can be used in cloud environments. Many cloud providers, including Azure, AWS, and Google Cloud, offer virtual machines that can be configured for RDP access. For RDS, you can set up Windows Server instances in the cloud and configure them as RDS hosts. Cloud-based solutions can offer benefits like scalability and reduced on-premises infrastructure costs.
-
What are some alternatives to Windows RDP and RDS?
There are several alternatives to Windows RDP and RDS, including:
- Citrix Virtual Apps and Desktops (formerly XenApp and XenDesktop)
- VMware Horizon
- Amazon WorkSpaces
- TeamViewer
- AnyDesk
- VNC (Virtual Network Computing)
Each of these solutions has its own strengths and may be more suitable depending on your specific needs, existing infrastructure, and budget.
